An electrical circuit with a gap or break in its continuous path is called an open circuit. This gap makes the electrical current stop flowing. You can think of an open circuit as an open switch whereby the electrical current cannot complete the return path to the source. The lack of continuity or a path prevents the connected electrical device from functioning properly.
Now, with the presence of an open circuit, what would be the effect?
No current flow: This is the primary characteristic of an open circuit where the electrical current is zero. This is simply because the current does not have a complete path.
Lack of continuity: Since there is a break in the circuit, it will interrupt the necessary flow of current, leading to a lack of continuity.
Devices stop working: A device with an open circuit will not work, as there is no electrical current flowing in it. For example, a light bulb goes off when its circuit is open.
Now that you know more about what is an open circuit, let us briefly learn about what causes it.
Broken wires: Having a broken wire in a circuit is what can lead to an open circuit, as no current will be flowing in the circuit anymore.
Faulty switches: A switch can be used to create an intentional open circuit, but some can be faulty. They will still not complete the circuit even when set at the ON position.
Failed components: The failure of internal components, such as a blown fuse in a car, breaks the flow of current and thus creating an open circuit.
Loose connections: An open electric circuit can also occur when there is a gap in the circuit because of a loose connection. Even if the gap is small, it is often enough to stop the flow of current.
A multimeter
Continuity tester
Wire cutters
Screwdrivers
Safety gear, such as goggles
Soldering iron
We will use a multimeter in this case to find out the difference between an open and closed circuit. Follow these steps to detect an open circuit.
Set the multimeter to continuity mode. A soundwave symbol indicates this mode.
Check for continuity in the circuit by connecting the multimeter probes to two points where you suspect there is a break in the circuit.
When there is no beep or high resistance in the reading, it means there is a break in the circuit. If there is a beep or low resistance, then the circuit is continuous with no open circuit.
How to Fix an Open Circuit
Now that you have identified an open circuit, it is vital to work on fixing it so that there is a complete circuit again. Here is how to do it:
Turn off the power to the circuit as a safety measure. Use a tester where possible to ensure there is no power flowing.
Identify where the break is coming from before starting the repair process.
As for the repairing part, there are several remedies you can consider. They include:
Securing loose connections, if that was the problem. Always ensure the connections are tightly secured.

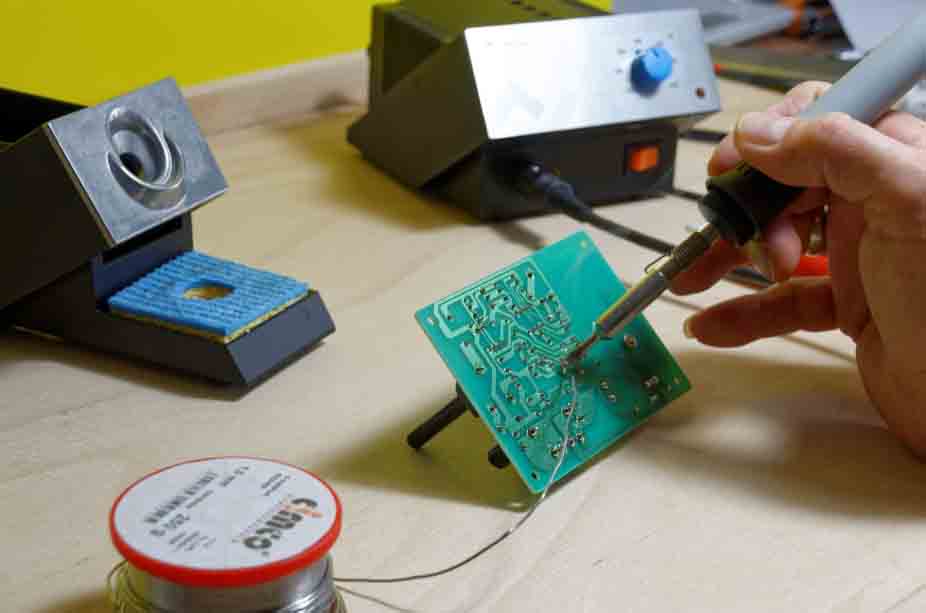

Solder or replace a broken joint or component. This ensures the complete circuit is restored.
Replace the damaged wires. You may have to cut out the damaged sections and replace them with new wires and secure the connections at both ends.
Replace the faulty components, such as a blown fuse, damaged switch, or any other component that is causing an open circuit.
Once done, restore power to verify the repair has resolved the issue.
It is possible to prevent some open circuits from happening. It depends on the preventative maintenance you do on the circuit. Here is what you can do to avoid open circuits in the future.
Make sure all the connections are secure. Periodically check and tighten any loose wiring or component connections that might be loose.
A visual inspection of the circuit is necessary to check for damage. If there are signs of fraying, pinching, or other damage, take steps to remedy them.
Watch out for corrosion, especially when in a humid or damp environment. The last thing you want is to deal with rusted connectors, as they can cause interruptions.
The environment can also determine if you end up with an open circuit. So, it is best to keep the electrical panels and devices in a clean and dry environment.
Use quality components as they have proven reliability for maintaining a closed circuit for years to come.
Avoid overloading circuits, as too much power being pulled from a single outlet or power strip may lead to the wires heating up and potentially cause an open circuit.
Open circuits can occur because of many things, as discussed above. It is therefore important to take measures to prevent them from happening. If you have no tools or skills to handle an open circuit, it is okay to get help from a professional electrician. All in all, having good preventative measures in place will keep the open circuit from occurring.
How can you tell you have an open circuit?
Common signs are that devices do not turn on, lights are flickering, or there is no response from a circuit. A multimeter in continuity mode is a reliable way of confirming you have an open circuit.
How do you detect an open circuit without using a multimeter?
You can do a visual inspection of the wiring to check for frayed spots or loose terminals. Burned parts on the wires can show an open circuit. However, a multimeter will be best for accurately finding an open circuit.
Is it safe to repair an open circuit on your own?
Yes, it is if you follow all the necessary precautions. This includes turning off the power, using insulated tools, and knowing when to call for an electrician.
