The Role of Current Divider in Designing Electronic Circuits
A current divider is a parallel electrical circuit where the incoming current is split into multiple paths. The current flowing through each path is inversely proportional to its resistance. In this case, the total current entering a junction is equal to the sum of the multiple currents leaving the same junction. Voltage is the same across the parallel paths in such a circuit.
For the current divider to work, the following must be true:
It is a parallel arrangement. This is where two or more resistors are in parallel to a power source.
Kirchhoff’s current law is applied to the junction. This means that the total current entering is equal to the current leaving.
Ohm's law is also taken into account. Here, the voltage drop across each parallel path is the same. Since the voltage is constant, the current for each branch is inversely proportional to the resistance.

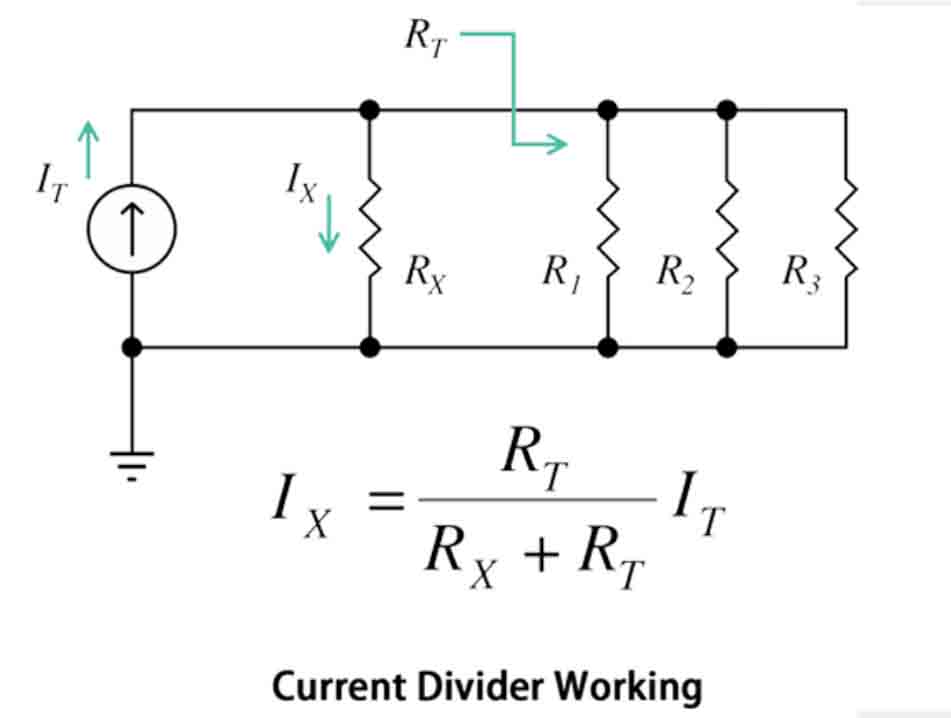

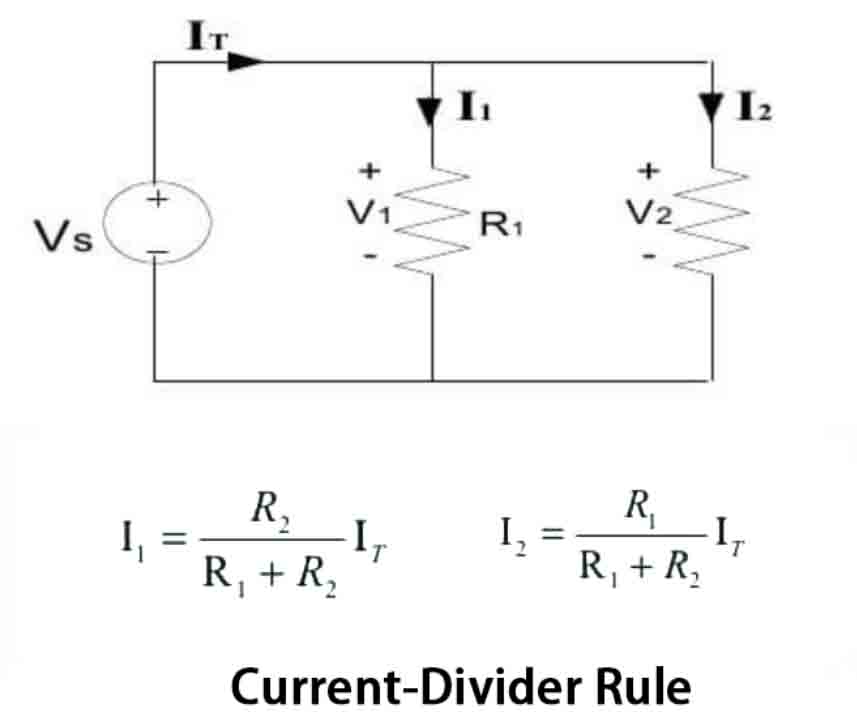

Understanding how the current divider works helps a lot with electronic circuit designs. Taking an example where we have two parallel resistors R1 and R2, with an incoming current I, then the path current through R1 (I1) will be calculated using the current divider formula: I1 = I * (R2 / (R1 + R2)).
The current divider rule can be essential in circuit design with many benefits. Examples include minimizing power losses as you ensure the current is distributed efficiently, simplified circuit analysis, and much more. Here are more benefits to using the current divider equation in circuit design.
The current divider rule formula helps a lot with understanding the parallel circuits. This is where you can determine the specific current for each path in a parallel circuit. So long as you know the total current and the resistance value, it is then possible.
Current dividers generally help with distributing the current evenly across parallel lines, preventing uneven loading, which may lead to inefficiencies.
Also, spreading the total current across the multiple parallel paths, the heat dissipated by a single component is reduced. The result is a more stable operation.
The current divider rule is a solution for controlling the amount of current flowing through the various components. Since this current is inversely proportional to resistance, it means a higher resistance path will have less current.
This working principle also makes it a good choice for overcurrent protection. You simply use a resistance value that makes the current in a particular path not to exceed a specific amount.
Now that you understand what is a current divider, we can focus on seeing how it is used for efficient circuit design. Here is what you can expect:
In a circuit design, you would want to ensure the power is well managed, and the circuit divider rule can help realize it. This includes load balancing and overload protection.
Load balancing is where the circuit designs ensure that the power is correctly distributed across multiple circuit components. The result is having each load receive the required current without overloading other parts. Such is crucial for optimized performance.
Of course, the same working principle helps in designing circuits that protect sensitive components from excessive current. In this case, you place a shunt resistor in parallel with the sensitive load. So, a portion of the current will be diverted away from the component. This is vital for limiting the current reaching the sensitive component and preventing potential damage in case of an overload.
Current divider circuits are also important in signal processing circuits. They are designed to be part of different stages of signal processing.
The rule allows you to adjust the resistance value in the divider to fine-tune the signal levels. This ensures accurate amplification or attenuation.
Current sensing is another good application of the current divider circuit design. For this design, the current going through the shunt resistor in parallel with the load helps determine the total current in the circuit. Such a circuit design helps monitor power use in an application or detect faults.
In this case, the current flowing through the shunt resistor is proportional to the total current.
You have to think about energy efficiency when designing an electronic circuit. Depending on how you design a circuit, using the current divider formula helps with correct component placement to ensure there is reduced power dissipation.
For example, in a battery-powered device, you can use the current divider to allocate power efficiently to extend the overall battery life.
Still, some circuit designs use the current dividers for dynamically adjusting the power consumption of the circuit depending on the current load.
The current divider formula for parallel circuits assumes ideal and lossless components. However, we know in reality there are component tolerances, circuit impedance, parasitic resistance, and many other factors that may affect the overall circuit accuracy and performance.
Here are the notable limitations and considerations to keep in mind when designing the circuits.
Component tolerances: Resistors generally have varying tolerances. For example, the resistance value can be ±5% which differs from the nominal value. This impacts the accuracy of the value used in the current division.
Parasitic resistance: Components and connections have internal resistances that might not be accounted for when doing calculations. Be sure that the parasitic resistance may alter the current distribution, especially when working with low-frequency applications.
AC circuits impedance: AC circuits also have impedance, which is the combination of resistance and reactance. Impedance also opposes the current flow. Make sure you still account for it when it comes to circuit design.
Thermal considerations: Resistors may also dissipate power as current flows through them. It is vital to check the thermal rating of the component to ensure it can handle the generated heat. This prevents overheating and component damage.
Complex circuits: When you look at the basic current divider rule, it looks simplified. However, in complex real-world applications, having a detailed analysis is vital to ensure you get accurate results.
Always make sure that you choose the appropriate resistor values
Using a simulation software before building the physical circuit is vital for fine-tuning
Combine the design with voltage dividers to create more optimized designs
Verify current distribution during the simulation phase and adjust accordingly
Do not forget to account for conductance, as it can affect how the circuit works.
The current divider rule is vital for creating reliable, efficient, and safe electronic circuits. This is achieved through controlling and predicting how current can be distributed in parallel paths. Such is vital for component protection, load balancing, and precise functionality. So, understanding this rule is key to how you design circuits.
What is the main use of a current divider in the design of electronics?
The main purpose of a current divider is to ensure there is proper distribution of current between the parallel branches in a circuit, proportional to their resistance.
Does the current divider improve efficiency in a circuit?
Yes. This is where the current divider rule is used for balancing the current flow across the various components, reducing unnecessary power loss, and preventing overheating in a circuit.
Is there a difference between the voltage divider and current divider?
In a voltage divider, the input voltage is split among components connected in series, while in a current divider, the input current is split among components connected in parallel. Both are vital for circuit design, but the current divider rule is used for controlling current flow and also protecting the components in the circuits.
