DIY 1500W triple phase Full bridge rectifier for wind turbine PCB

Triple Phase Rectifier

09/08/2025 | Views: 1928 | Circuits | by: ELECTRONOOBS

I’m building my own wind turbine out of a hoverboard motor. Actually I want to use two but that’s for later. But today we will talk about a crucial component for any wind turbine and that is the triple phase regulator. In this case a quite powerful one together and we will see the PCB I’ve designed, the circuit and the needed components.

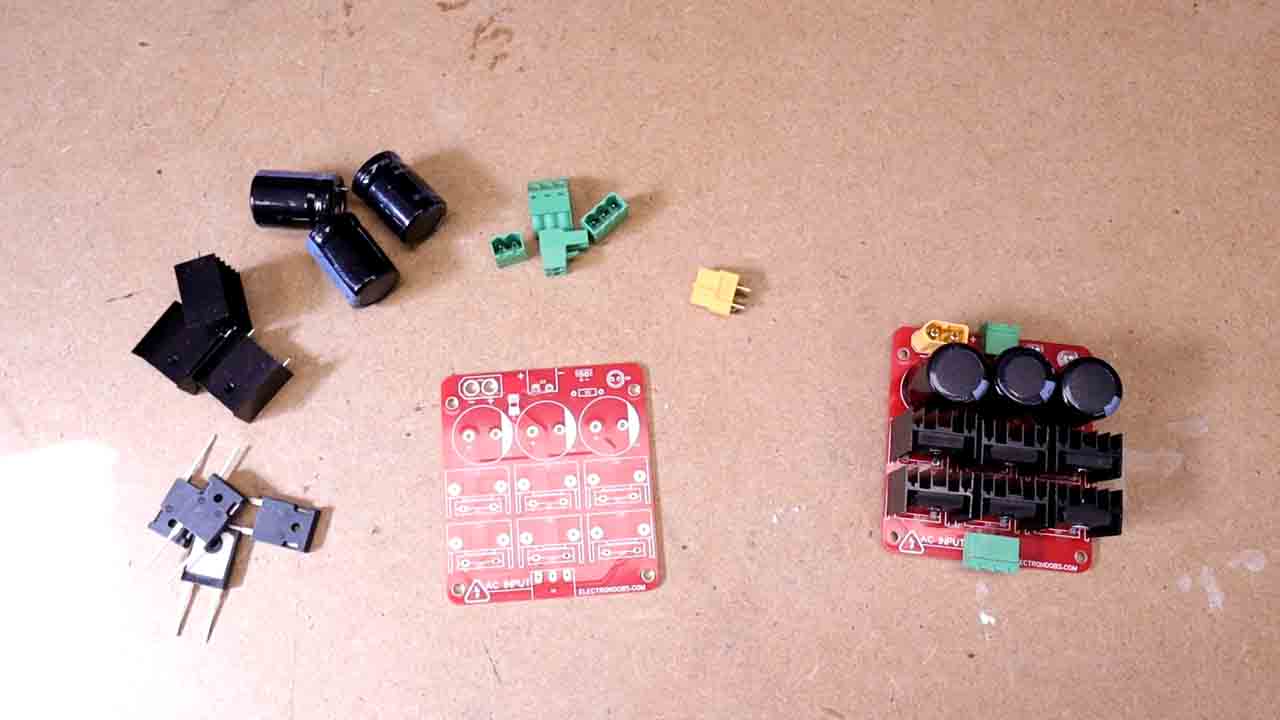

Part 1 - What we need

So why do we need a triple phase regulator, why triple phase and not a normal one, why is the PCB this big and has dissipators, how to make one and also download my design for free from below.

Get PCB Gerbers Download GERBERs
6 x RHRG75120 Diode LINK Aliexpress
6 x Heat Dissipator LINK Aliexpress
3 x 100V 1000uF BD22 Capacitor LINK Aliexpress
1 x 10K resistor LINK Aliexpress
1 x 5mm LED LINK Aliexpress
1 x KF2EDGV/R-3P connector LINK Aliexpress
1 x 2edgk-5.08-2p connector LINK Aliexpress
1 x XT60 connector LINK Aliexpress

homemade full bridge rectifier PCB for wind turbine

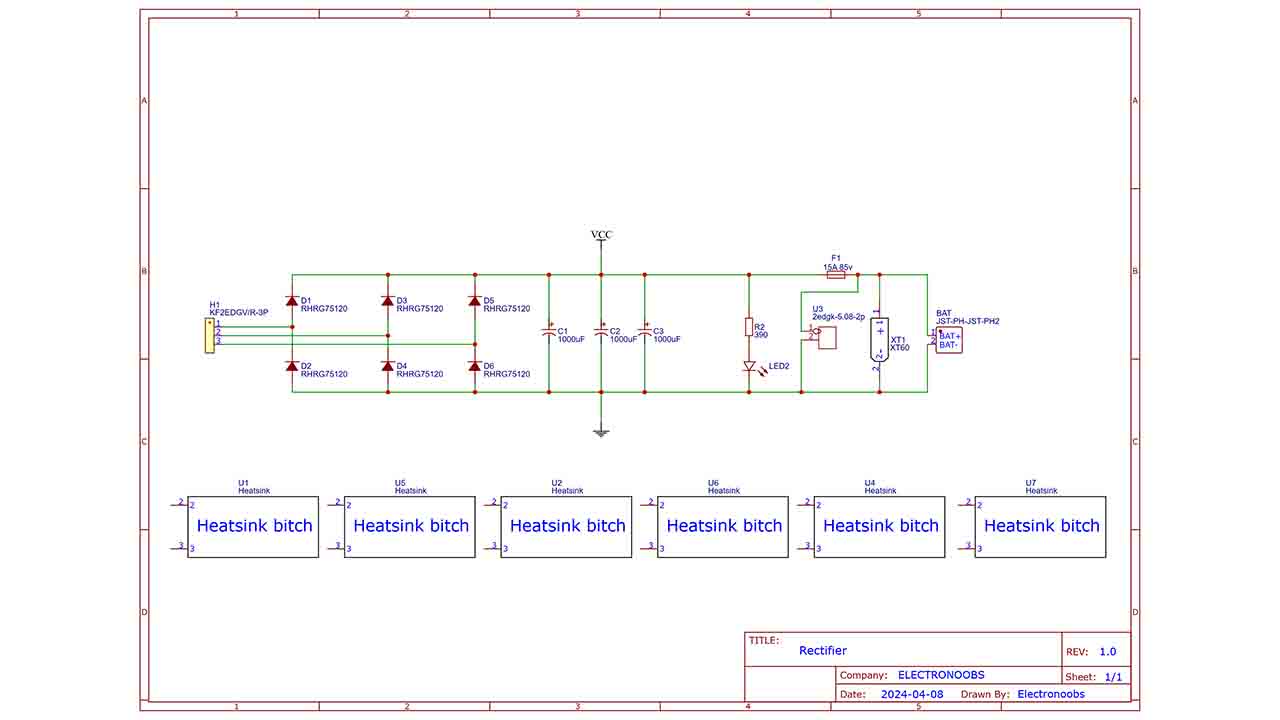

Part 2 - Schematic

Part 3 - Assembled

Part 4 - Full Video
