Main case STL files (Homemade electric scooter)



Download the .zip file with the the STL files below

I’ve printed it using my Creality CR10 printer with 2 perimeters, 15% infill and a 0.4 nozzle.


STL battery case electric scooter homemade

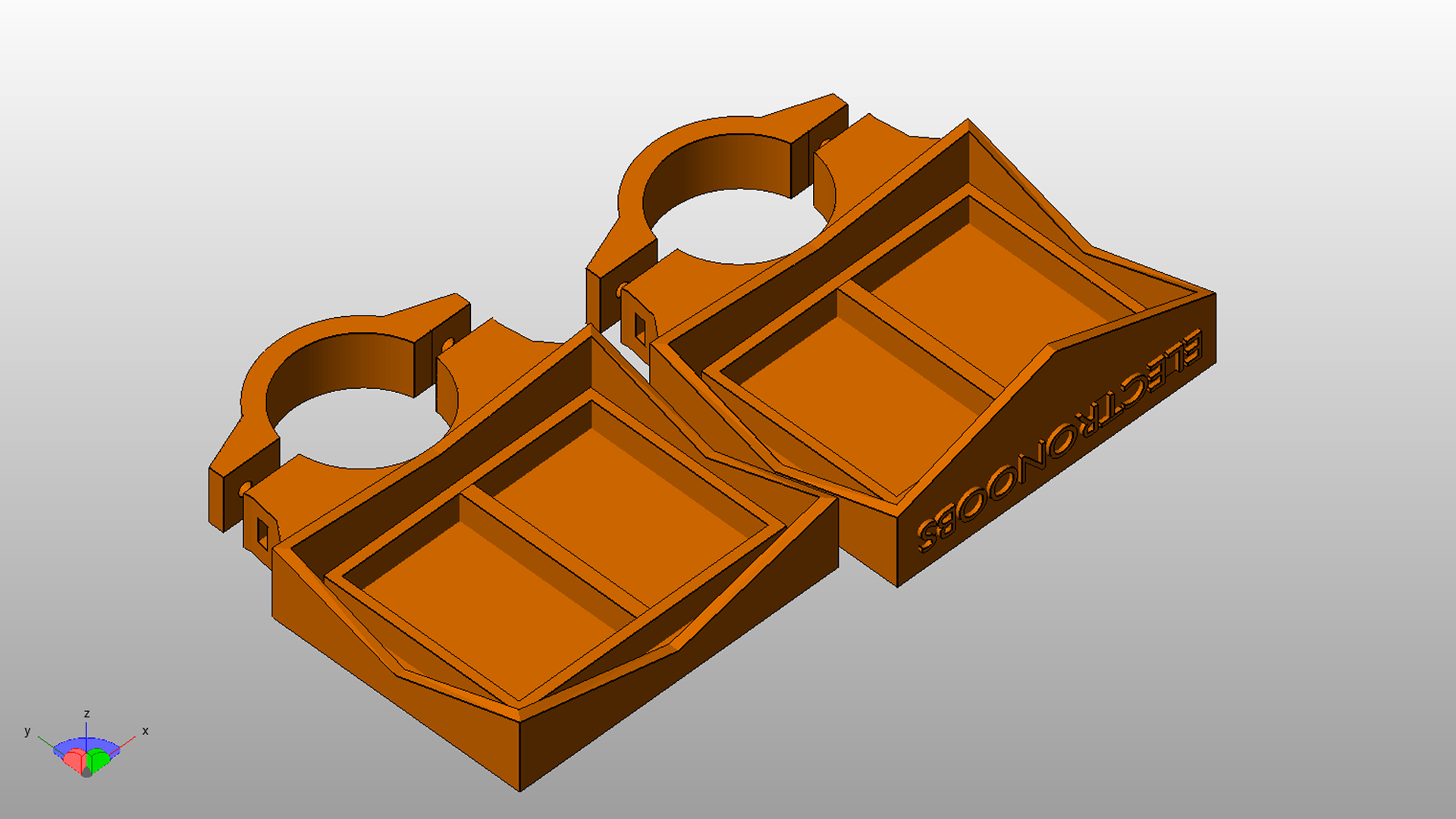

Ok so these are the top and bottom parts of the case. As you can see they have m3 nuts holes so you could mont it on the scooter main axis. The entire case is made out of plywood wraped in carbon fiber design vinyl. You have the dimensions of the plywood sheets below. Cut those 4 parts and wrap them in carbon fiber vinyl if you want.


STL battery case electric scooter homemade

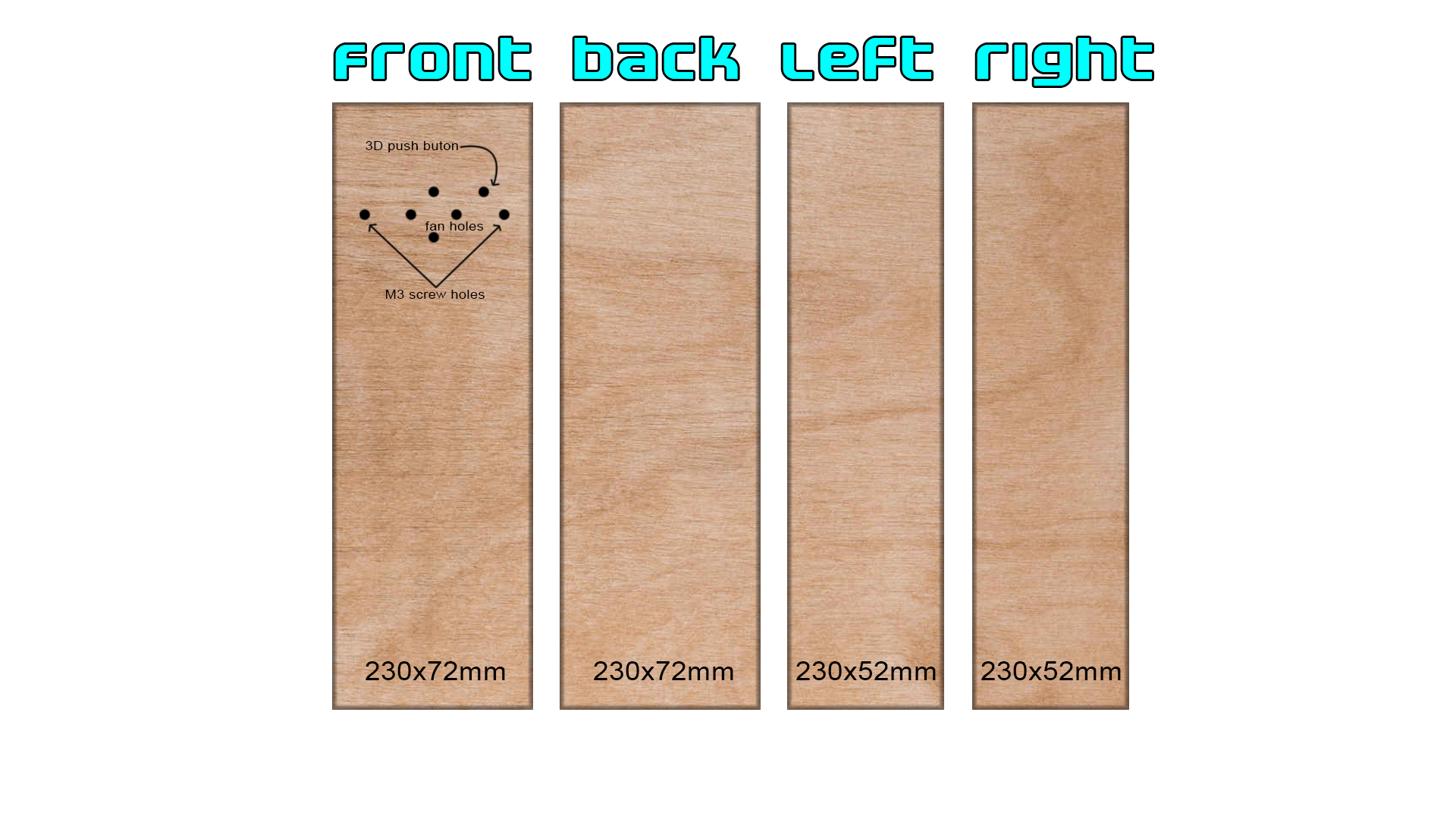

Ok so now you have the plywood parts. As you can see the fron plate has holes in it. There is where we will fit the ESC using M3 screws and a thin metal sheet. Also there we will add the 3D printed plastic push button for the ESC. The ESC in my case will only turn on if that push button is pressed. So, in order to not have to open the case every time you want to start the scooter, we add a plastic large push button that will push the small button inside.
