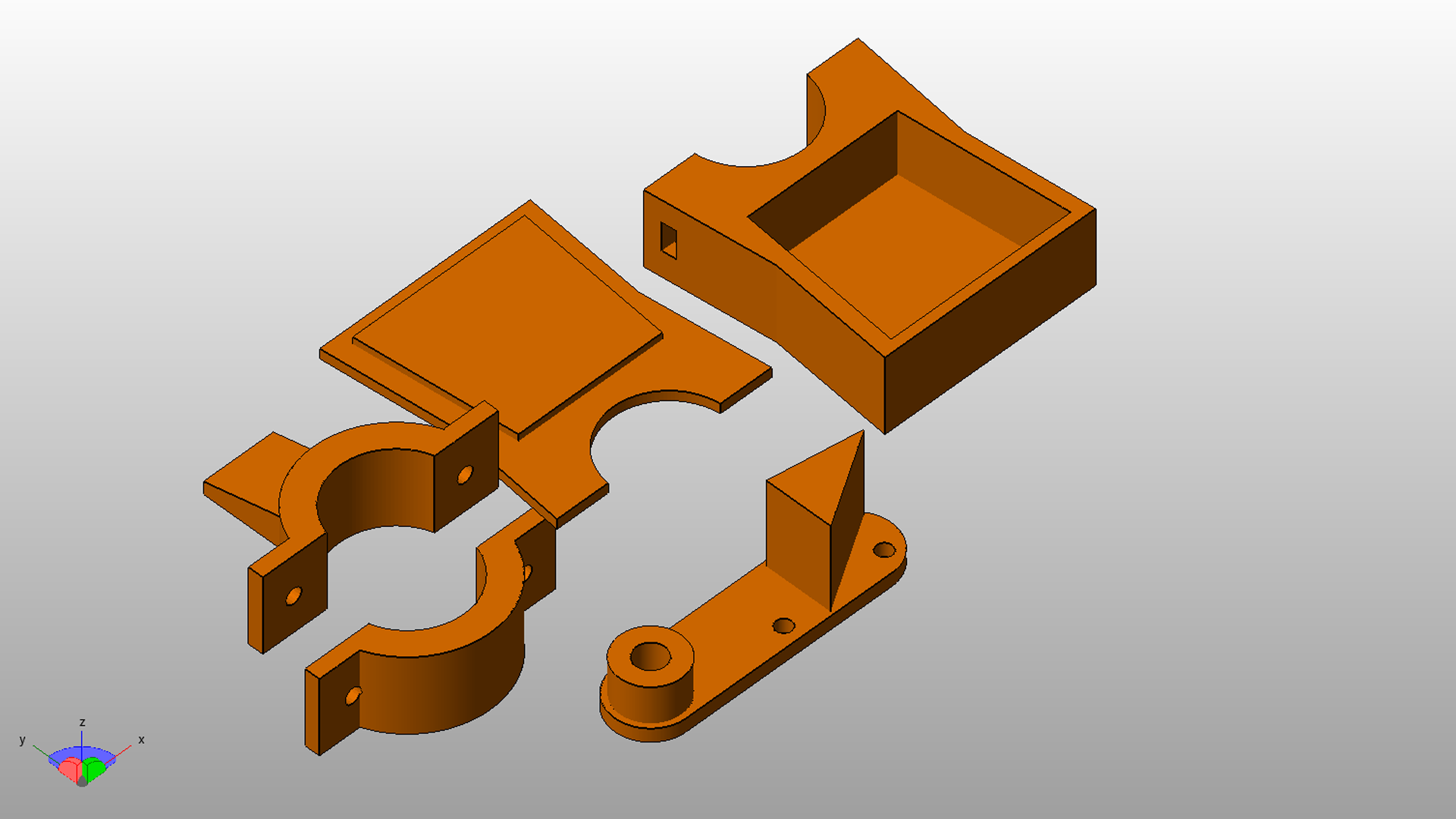

Pot case STL files (Homemade electric scooter)



Download the .zip file with the the STL files below

I’ve printed it using my Creality CR10 printer with 2 perimeters, 15% infill and a 0.4 nozzle.


STL 3D electric scooter homemade

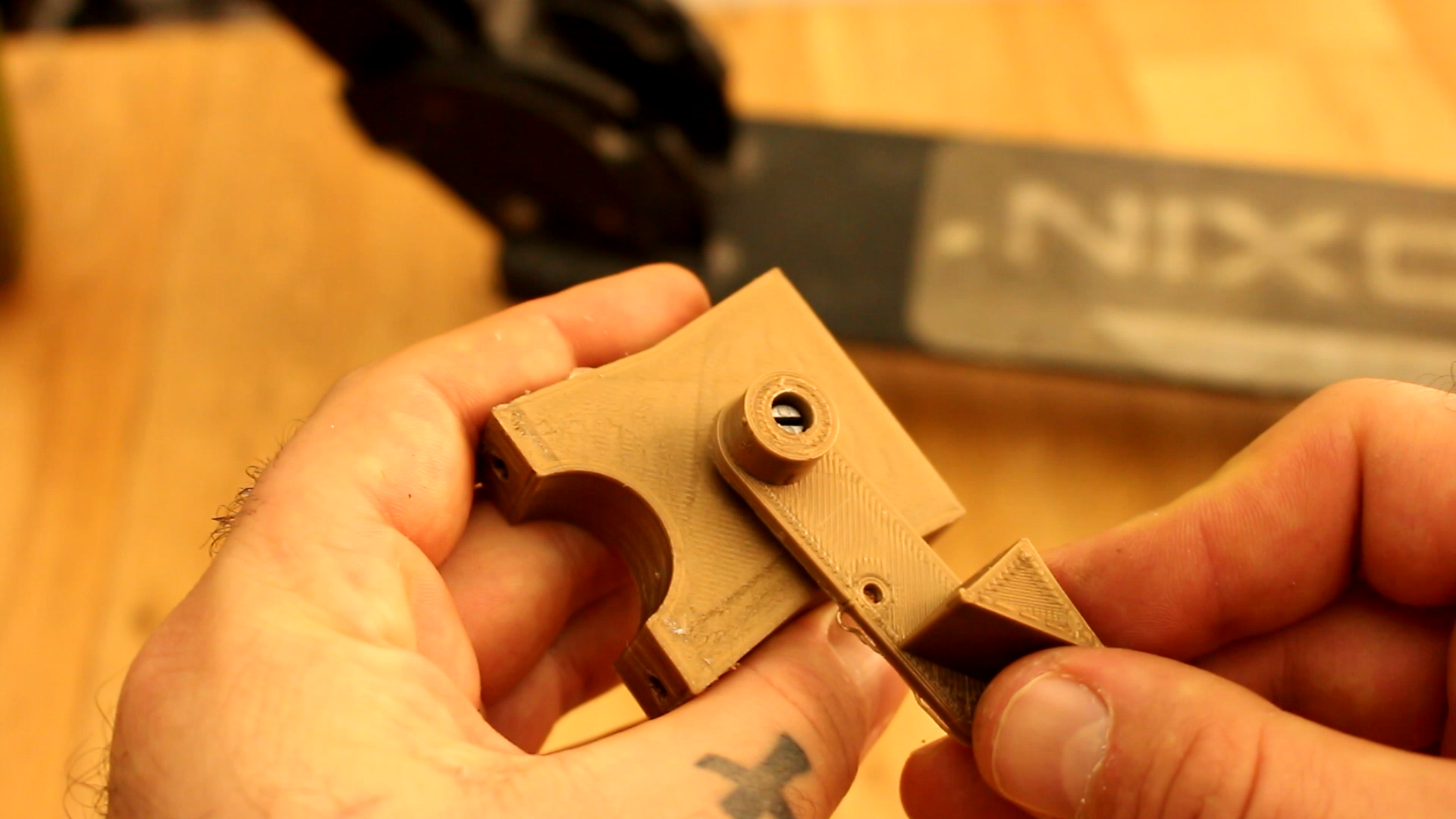

Inside of this case you have to place the potentiometer. I've used a 10K ohms potentiometer. Solder 5V and ground to the potentiometer and a signal wire to the middle pin. Then solder the signal wire to analog input A0 of the arduino. before you upload the final code you should use the Arduino monitor in order to see the range of the potentiometer while you rotate it inside of the case.


STL 3D electric scooter homemade
