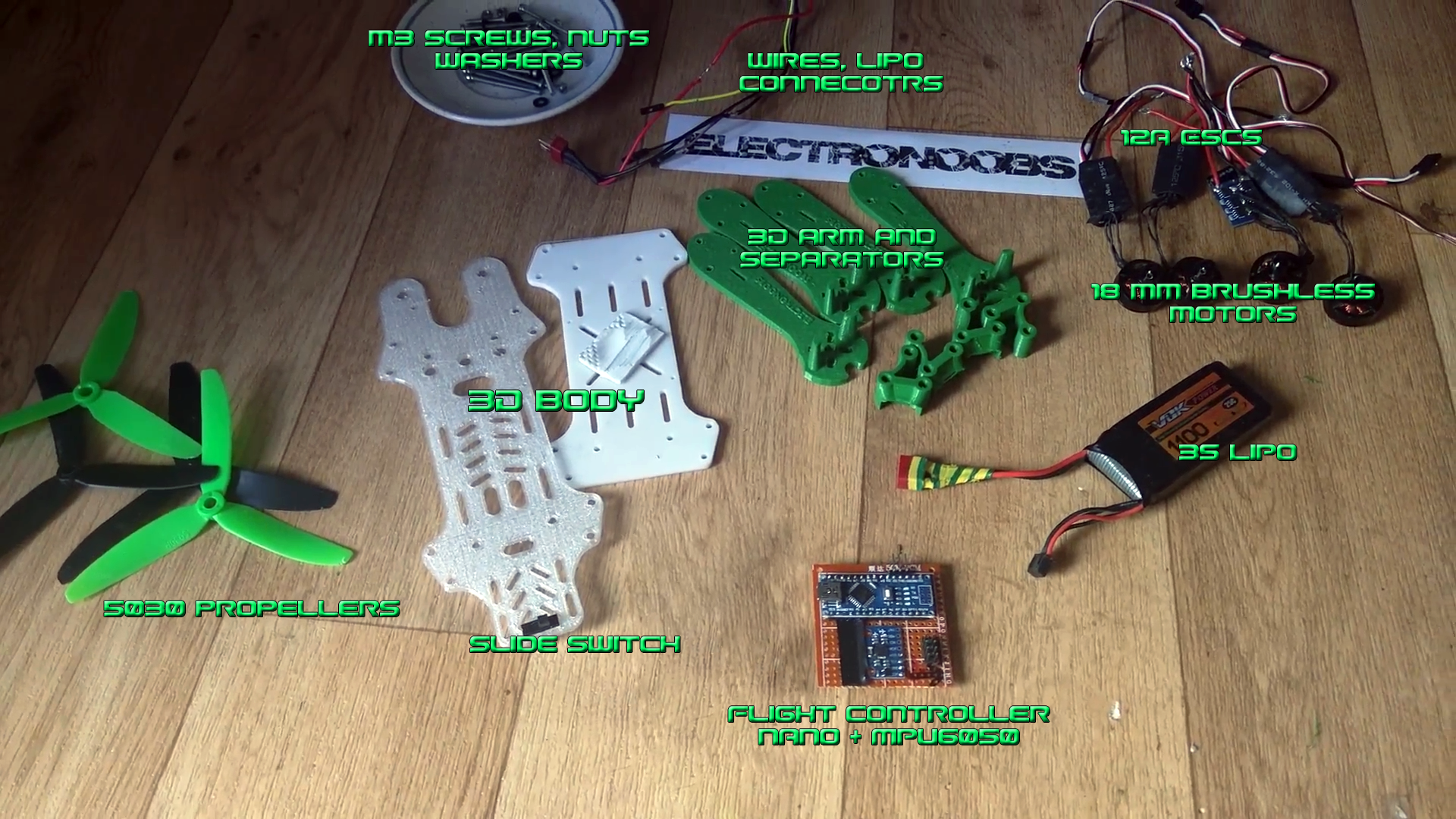

Arduino drone V2.0 - Part list


Go back:
PHOTO COMMENTS
This drone body is a 250 size 3D printed one. You could buy one or maybe build your own one. Try make it very light and strong. I recommend you to use carbon material. Also the 250 size represents the diagonal distance between the motors so keep that in mind.
PLA price:3$
This are 18mm diameter brushless motors. We will need 4. This are for a 250 size drone. If your drone is bigger you would need bigger motors and ESCs as well. Two are clockwise and the others are counterclockwise.
LINK
This are 12A ESC2. You could use higher current ones but this are quite cheap. Be carefoul with the size because if you are building a 250 size drone you will need some small ESCs. So look at it's size when you buy them because on the internet photos you can't tell the size.
LINK
I will use 5030 3 blade propellers. This are double 30 degre probellers made of plastic. We need two clockwise and two counterclockwise.
LINK
This is the inetrtial movement unit or IMU. It is a MPU6050 module that has an accelerometer and gyroscope. With this two sensres we will be able to steady control the drone. It uses a i2c comunication and we will connect it to an Arduino NANO.
LINK
We need a radio transmitter with PWM receiver. I've used the AT10 from RadioLink. You could use any other PWM transmitter/receiver.
LINK
We also need an Arduino NANO for the flight controller that will make all the processes.
LINK
We will need a 3 cell lipo bttery. Use a medium heavy battery depending on your drone size. Because this is a 250 size I'll use a not so heavy one.
LINK
