Arduino drone V2.0 - 4 Ch example

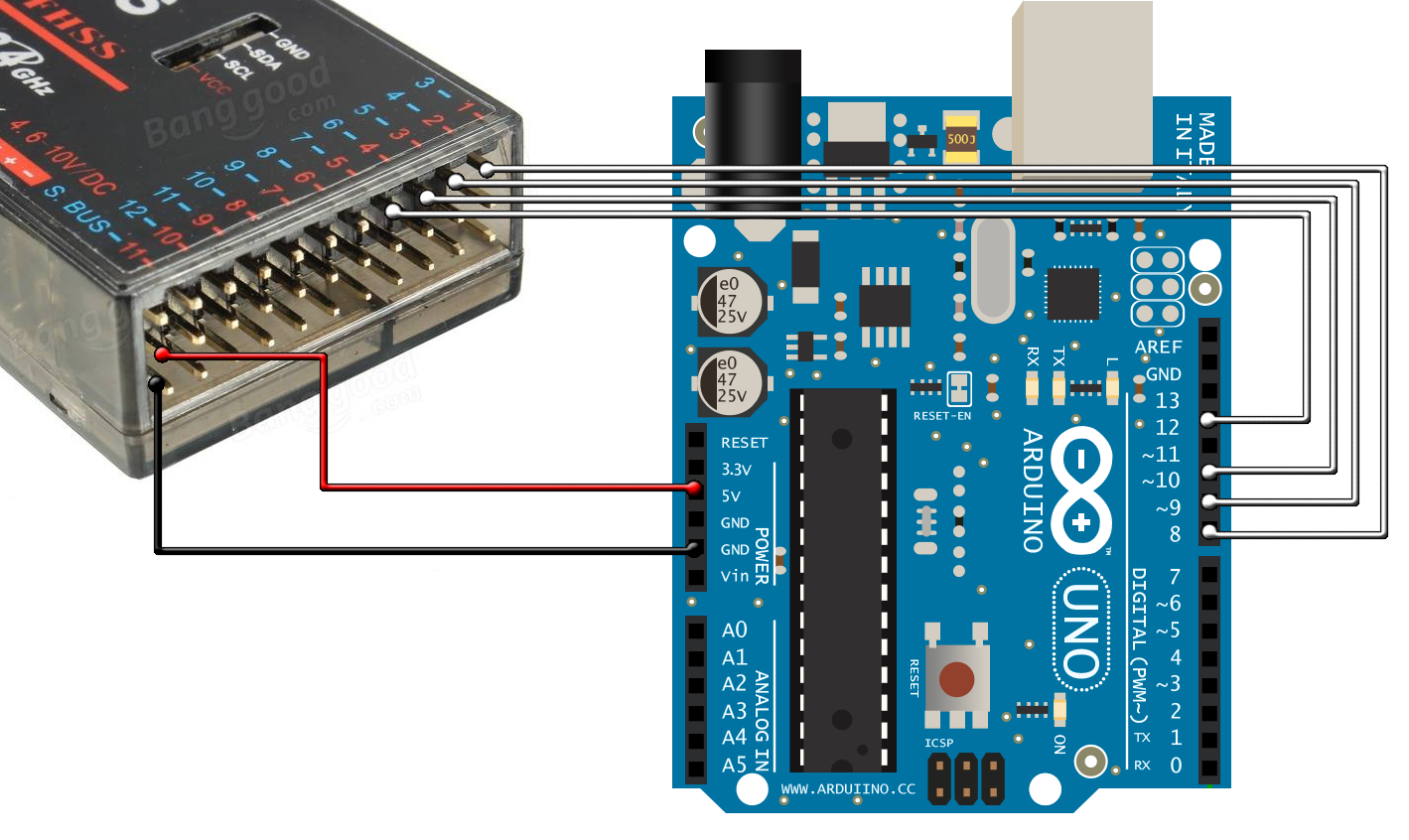

Unzip the file. Open the .ino file and upload it to the Arduino UNO/NANO. Make THIS connection aopen the serial monitor once Uploaded. Remember to select 250000 baud rate or change the speed in the code.
Go back:
Or copy this code:
/*One channel PWM read example; author: ELECTRONOOBS
* Subscribe: http://www.youtube.com/c/ELECTRONOOBS
* Thank you
*/
//We create variables for the time width values of each PWM input signal
unsigned long counter_1, counter_2, counter_3, counter_4, current_count;
//We create 4 variables to stopre the previous value of the input signal (if LOW or HIGH)
byte last_CH1_state, last_CH2_state, last_CH3_state, last_CH4_state;
//To store the 1000us to 2000us value we create variables and store each channel
int input_YAW; //In my case channel 4 of the receiver and pin D12 of arduino
int input_PITCH; //In my case channel 2 of the receiver and pin D9 of arduino
int input_ROLL; //In my case channel 1 of the receiver and pin D8 of arduino
int input_THROTTLE; //In my case channel 3 of the receiver and pin D10 of arduino
void setup() {
/*
* Port registers allow for lower-level and faster manipulation of the i/o pins of the microcontroller on an Arduino board.
* The chips used on the Arduino board (the ATmega8 and ATmega168) have three ports:
-B (digital pin 8 to 13)
-C (analog input pins)
-D (digital pins 0 to 7)
//All Arduino (Atmega) digital pins are inputs when you begin...
*/
PCICR |= (1 << PCIE0); //enable PCMSK0 scan
PCMSK0 |= (1 << PCINT0); //Set pin D8 trigger an interrupt on state change.
PCMSK0 |= (1 << PCINT1); //Set pin D9 trigger an interrupt on state change.
PCMSK0 |= (1 << PCINT2); //Set pin D10 trigger an interrupt on state change.
PCMSK0 |= (1 << PCINT4); //Set pin D12 trigger an interrupt on state change.
//Start the serial in order to see the result on the monitor
//Remember to select the same baud rate on the serial monitor
Serial.begin(250000);
}
void loop() {
/*
* Ok, so in the loop the only thing that we do in this example is to print
* the received values on the Serial monitor. The PWM values are read in the ISR below.
*/
Add the next part of the code here...
Soon...
}
//This is the interruption routine
//----------------------------------------------
ISR(PCINT0_vect){
//First we take the current count value in micro seconds using the micros() function
current_count = micros();
///////////////////////////////////////Channel 1
if(PINB & B00000001){ //We make an AND with the pin state register, We verify if pin 8 is HIGH???
if(last_CH1_state == 0){ //If the last state was 0, then we have a state change...
last_CH1_state = 1; //Store the current state into the last state for the next loop
counter_1 = current_count; //Set counter_1 to current value.
}
}
else if(last_CH1_state == 1){ //If pin 8 is LOW and the last state was HIGH then we have a state change
last_CH1_state = 0; //Store the current state into the last state for the next loop
input_ROLL = current_count - counter_1; //We make the time difference. Channel 1 is current_time - timer_1.
}
///////////////////////////////////////Channel 2
if(PINB & B00000010 ){ //pin D9 -- B00000010
if(last_CH2_state == 0){
last_CH2_state = 1;
counter_2 = current_count;
}
}
else if(last_CH2_state == 1){
last_CH2_state = 0;
input_PITCH = current_count - counter_2;
}
///////////////////////////////////////Channel 3
if(PINB & B00000100 ){ //pin D10 - B00000100
if(last_CH3_state == 0){
last_CH3_state = 1;
counter_3 = current_count;
}
}
else if(last_CH3_state == 1){
last_CH3_state = 0;
input_THROTTLE = current_count - counter_3;
}
///////////////////////////////////////Channel 4
if(PINB & B00010000 ){ //pin D12 -- B00010000
if(last_CH4_state == 0){
last_CH4_state = 1;
counter_4 = current_count;
}
}
else if(last_CH4_state == 1){
last_CH4_state = 0;
input_YAW = current_count - counter_4;
}
}
Go back:
