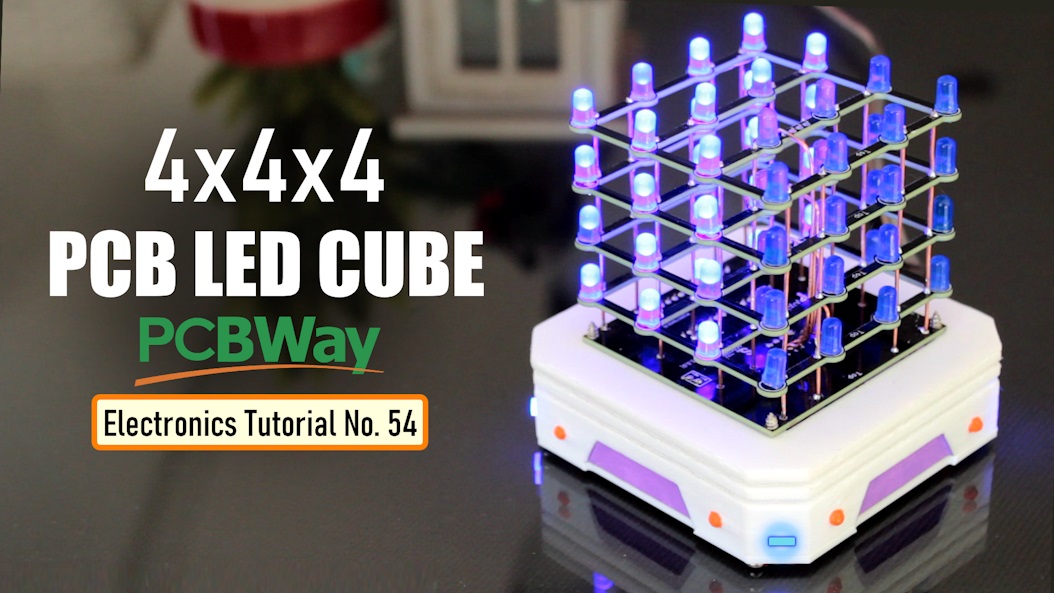

4x4x4 PCB LED CUBE
19 days ago | Blogs | by: tarantula3
Share
PREVIOUS BLOG
NEXT BLOG


Bring life to your home with this enchanting 4x4x4 LED cube. From static to flashing, chasing, or fading this cube can be programmed to display many different types of 3D LED transitions. This customizable PCB LED cube is super easy to make and fun to have in your home. Go ahead and create a forest of these cubes using various color LEDs to enhance the beauty of your Christmas Tree this Christmas.


This cube has 64 Blue LEDs organized in 4 layers. These LEDs are wired up to an Arduino Nano. Each LED can be addressed individually using Arduino IDE, enabling it to display amazing 3D transitions!



There are hundreds of tutorials of these cubes made using exposed metal wires and by using crazy soldering techniques, which just gives me shivers. In this tutorial I'll show you guys how to make this super simple 4x4x4 PCB LED cube "without over complicating anything". With just basic soldering skills, you can create this PCB cube and light up your living room making everyone jealous.


/*
  4x4x4 LED Cube
  Connection Setup:
  Columns
  [(x,y)-Pin]
  (1,1)-13
  (1,2)-12
  (1,3)-11
  (1,4)-10
  (2,1)-9
  (2,2)-8
  (2,3)-7
  (2,4)-6
  (3,1)-5
  (3-2)-4
  (3-3)-3
  (3,4)-2
  (4,1)-1
  (4,2)-0
  (4,3)-A5
  (4,4)-A4
  Layers
  [layer-Pin]
  a-A0
  b-A1
  c-A2
  d-A3
*/
#include <avr/wdt.h>

//initializing and declaring led rows
  int column[16]={13,12,11,10,9,8,7,6,5,4,3,2,1,0,A5,A4};
//initializing and declaring led layers
  int layer[4]={A3,A2,A1,A0};

  int time = 250;

void setup() {
  //setting rows to ouput
  for(int i = 0; i<16; i++)
  {
    pinMode(column[i], OUTPUT);
  }
  //setting layers to output
  for(int i = 0; i<4; i++)
  {
    pinMode(layer[i], OUTPUT);
  }
  //seeding random for random pattern
  randomSeed(analogRead(10));
};

//xxxxxxxxxxxxxxxxxxxxFUNCTION LOOPxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

void loop() {
  turnEverythingOff();//turn all off
  randomflicker();
  turnEverythingOff();//turn all off
  flickerOn();
  turnEverythingOn();//turn all on
  delay(time);
  turnOnAndOffAllByLayerUpAndDownNotTimed();
  layerstompUpAndDown();
  turnOnAndOffAllByColumnSideways();
  delay(time);
  aroundEdgeDown();
  turnEverythingOff();
  TopBottomTwoBlink();
  randomflicker();
  randomRain();
  diagonalRectangle();
  goThroughAllLedsOneAtATime();
  propeller();
  CenterSquare(10);
  CornerBlink(10);
  randomflicker();
  spiralInAndOut();
  flickerOff();
  turnEverythingOff();
  CornerAndInnerAlternateBlink();
  delay(1000);

  reboot(); // Soft Reset the Arduino
};

//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxSOFT REBOOTxxxxxxxxxxxxxxxxxxxxxxxxxxxx
//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
void reboot() {
  wdt_disable();
  wdt_enable(WDTO_1S);
  while (1) {}
};

//xxxxxxxxxxxxxxxxxxxxLED HANDLER FUNCTIONSxxxxxxxxxxxxxxxxxxxxxxxxxxxx
//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

///////////////////////////////////////////////////////////turn all off
void turnEverythingOff() {
   for(int i = 0; i<16; i++)
   {
     digitalWrite(column[i], 1);
   }
   for(int i = 0; i<4; i++)
   {
     digitalWrite(layer[i], 0);
   }
 };

////////////////////////////////////////////////////////////turn all on
void turnEverythingOn() {
  for(int i = 0; i<16; i++)
  {
    digitalWrite(column[i], 0);
  }
  //turning on layers
  for(int i = 0; i<4; i++)
  {
    digitalWrite(layer[i], 1);
  }
};
///////////////////////////////////////////////////////turn columns off
void turnColumnsOff() {
  for(int i = 0; i<16; i++)
  {
    digitalWrite(column[i], 1);
  }
};
/////////////////////////////////////////////////////Square in the center
void CenterSquare(int x) {
  for(int i = 0; i<x; i++)
  {
    turnEverythingOff();
    delay(200);
    digitalWrite(column[5], 0);
    digitalWrite(column[6], 0);
    digitalWrite(column[9], 0);
    digitalWrite(column[10], 0);
    digitalWrite(layer[1], 1);
    digitalWrite(layer[2], 1);
    delay(200);
  };
};

////////////////////////////////////////////////////////////Corner blink
void CornerBlink(int x) {
  for(int i = 0; i<x; i++)
  {
    turnEverythingOff();
    delay(200);
    digitalWrite(column[0], 0);
    digitalWrite(column[3], 0);
    digitalWrite(column[12], 0);
    digitalWrite(column[15], 0);
    digitalWrite(layer[0], 1);
    digitalWrite(layer[3], 1);
    delay(200);
  };
};

////////////////////Function that lets the top and bottom layers to blink
void TopBottomTwoBlink() {
  for(int i = 0; i<15; i++)
  {
    turnEverythingOff();
    delay(50);
    for(int i = 0; i<16; i++)
    {
      digitalWrite(column[i], 0);
    };
    digitalWrite(layer[0], 1);
    digitalWrite(layer[1], 1);
    digitalWrite(layer[2], 0);
    digitalWrite(layer[3], 0);
    delay(50);
  };

  for(int i = 0; i<15; i++)
  {
    turnEverythingOff();
    delay(50);
    for(int i = 0; i<16; i++)
    {
      digitalWrite(column[i], 0);
    };
    digitalWrite(layer[0], 0);
    digitalWrite(layer[1], 0);
    digitalWrite(layer[2], 1);
    digitalWrite(layer[3], 1);
    delay(50);
  };
};

///////////////////////////////////////Corner And Inner Alternate Blink
void CornerAndInnerAlternateBlink() {
  for(int i = 0; i<15; i++)
  {
    CenterSquare(2);
    CornerBlink(2);
  };
};
/////////////////////////////////////////////////////////////flicker on
void flickerOn()
{
  int i = 150;
  while(i != 0)
  {
    turnEverythingOn();
    delay(i);
    turnEverythingOff();
    delay(i);
    i-= 5;
  }
}
//////////////turn everything on and off by layer up and down NOT TIMED
void turnOnAndOffAllByLayerUpAndDownNotTimed()
{
  int x = 75;
  for(int i = 5; i != 0; i--)
  {
    turnEverythingOn();
    for(int i = 4; i!=0; i--)
    {
      digitalWrite(layer[i-1], 0);
      delay(x);
    }
    for(int i = 0; i<4; i++)
    {
      digitalWrite(layer[i], 1);
      delay(x);
    }
      for(int i = 0; i<4; i++)
    {
      digitalWrite(layer[i], 0);
      delay(x);
    }
    for(int i = 4; i!=0; i--)
    {
      digitalWrite(layer[i-1], 1);
      delay(x);
    }
  }
}
//////////////////////////turn everything on and off by column sideways
void turnOnAndOffAllByColumnSideways()
{
  int x = 75;
  turnEverythingOff();
  //turn on layers
  for(int i = 0; i<4; i++)
  {
    digitalWrite(layer[i], 1);
  }
  for(int y = 0; y<3; y++)
  {
    //turn on 0-3
    for(int i = 0; i<4; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 4-7
    for(int i = 4; i<8; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 8-11
    for(int i = 8; i<12; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 12-15
    for(int i = 12; i<16; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn off 0-3
    for(int i = 0; i<4; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 4-7
    for(int i = 4; i<8; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 8-11
    for(int i = 8; i<12; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 12-15
    for(int i = 12; i<16; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn on 12-15
    for(int i = 12; i<16; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 8-11
    for(int i = 8; i<12; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 4-7
    for(int i = 4; i<8; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 0-3
    for(int i = 0; i<4; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn off 12-15
    for(int i = 12; i<16; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 8-11
    for(int i = 8; i<12; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 4-7
    for(int i = 4; i<8; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 0-3
    for(int i = 0; i<4; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
  }
}
/////////////////////////////////////////up and down single layer stomp
void layerstompUpAndDown()
{
  int x = 75;
  for(int i = 0; i<4; i++)
  {
    digitalWrite(layer[i], 0);
  }
  for(int y = 0; y<5; y++)
  {
    for(int count = 0; count<1; count++)
    {
      for(int i = 0; i<4; i++)
      {
        digitalWrite(layer[i], 1);
        delay(x);
        digitalWrite(layer[i], 0);
      }
      for(int i = 4; i !=0; i--)
      {
        digitalWrite(layer[i-1], 1);
        delay(x);
        digitalWrite(layer[i-1], 0);
      }
    }
    for(int i = 0; i<4; i++)
    {
      digitalWrite(layer[i], 1);
      delay(x);
    }
    for(int i = 4; i!=0; i--)
    {
      digitalWrite(layer[i-1], 0);
      delay(x);
    }
  }
}
////////////////////////////////////////////////////////////flicker off
void flickerOff()
{
  turnEverythingOn();
  for(int i = 0; i!= 150; i+=5)
  {
    turnEverythingOff();
    delay(i+50);
    turnEverythingOn();
    delay(i);
  }
}
///////////////////////////////////////////around edge of the cube down
void aroundEdgeDown()
{
  for(int x = 200; x != 0; x -=50)
  {
    turnEverythingOff();
    for(int i = 4; i != 0; i--)
    {
      digitalWrite(layer[i-1], 1);
      digitalWrite(column[5], 0);
      digitalWrite(column[6], 0);
      digitalWrite(column[9], 0);
      digitalWrite(column[10], 0);

      digitalWrite(column[0], 0);
      delay(x);
      digitalWrite(column[0], 1);
      digitalWrite(column[4], 0);
      delay(x);
      digitalWrite(column[4], 1);
      digitalWrite(column[8], 0);
      delay(x);
      digitalWrite(column[8], 1);
      digitalWrite(column[12], 0);
      delay(x);
      digitalWrite(column[12], 1);
      digitalWrite(column[13], 0);
      delay(x);
      digitalWrite(column[13], 1);
      digitalWrite(column[15], 0);
      delay(x);
      digitalWrite(column[15], 1);
      digitalWrite(column[14], 0);
      delay(x);
      digitalWrite(column[14], 1);
      digitalWrite(column[11], 0);
      delay(x);
      digitalWrite(column[11], 1);
      digitalWrite(column[7], 0);
      delay(x);
      digitalWrite(column[7], 1);
      digitalWrite(column[3], 0);
      delay(x);
      digitalWrite(column[3], 1);
      digitalWrite(column[2], 0);
      delay(x);
      digitalWrite(column[2], 1);
      digitalWrite(column[1], 0);
      delay(x);
      digitalWrite(column[1], 1);
    }
  }
}
/////////////////////////////////////////////////////////random flicker
void randomflicker()
{
  turnEverythingOff();
  int x = 10;
  for(int i = 0; i !=750; i+=2)
  {
  int randomLayer = random(0,4);
  int randomColumn = random(0,16);

  digitalWrite(layer[randomLayer], 1);
  digitalWrite(column[randomColumn], 0);
  delay(x);
  digitalWrite(layer[randomLayer], 0);
  digitalWrite(column[randomColumn], 1);
  delay(x);
  }
}
////////////////////////////////////////////////////////////random rain
void randomRain()
{
  turnEverythingOff();
  int x = 100;
  for(int i = 0; i!=60; i+=2)
  {
    int randomColumn = random(0,16);
    digitalWrite(column[randomColumn], 0);
    digitalWrite(layer[0], 1);
    delay(x+50);
    digitalWrite(layer[0], 0);
    digitalWrite(layer[1], 1);
    delay(x);
    digitalWrite(layer[1], 0);
    digitalWrite(layer[2], 1);
    delay(x);
    digitalWrite(layer[2], 0);
    digitalWrite(layer[3], 1);
    delay(x+50);
    digitalWrite(layer[3], 0);
    digitalWrite(column[randomColumn], 1);
  }
}
/////////////////////////////////////////////////////diagonal rectangle
void diagonalRectangle()
{
  int x = 350;
  turnEverythingOff();
  for(int count = 0; count<5; count++)
  {
    //top left
    for(int i = 0; i<8; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[3], 1);
    digitalWrite(layer[2], 1);
    delay(x);
    turnEverythingOff();
    //middle middle
    for(int i = 4; i<12; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[1], 1);
    digitalWrite(layer[2], 1);
    delay(x);
    turnEverythingOff();
    //bottom right
    for(int i = 8; i<16; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[0], 1);
    digitalWrite(layer[1], 1);
    delay(x);
    turnEverythingOff();
    //bottom middle
    for(int i = 4; i<12; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[0], 1);
    digitalWrite(layer[1], 1);
    delay(x);
    turnEverythingOff();
    //bottom left
    for(int i = 0; i<8; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[0], 1);
    digitalWrite(layer[1], 1);
    delay(x);
    turnEverythingOff();
    //middle middle
    for(int i = 4; i<12; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[1], 1);
    digitalWrite(layer[2], 1);
    delay(x);
    turnEverythingOff();
    //top right
    for(int i = 8; i<16; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[2], 1);
    digitalWrite(layer[3], 1);
    delay(x);
    turnEverythingOff();
    //top middle
    for(int i = 4; i<12; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[2], 1);
    digitalWrite(layer[3], 1);
    delay(x);
    turnEverythingOff();
  }
  //top left
  for(int i = 0; i<8; i++)
  {
    digitalWrite(column[i], 0);
  }
  digitalWrite(layer[3], 1);
  digitalWrite(layer[2], 1);
  delay(x);
  turnEverythingOff();
}
//////////////////////////////////////////////////////////////propeller
void propeller()
{
  turnEverythingOff();
  int x = 90;
  for(int y = 4; y>0; y--)
  {
    for(int i = 0; i<6; i++)
    {
      //turn on layer
      digitalWrite(layer[y-1], 1);
      //a1
      turnColumnsOff();
      digitalWrite(column[0], 0);
      digitalWrite(column[5], 0);
      digitalWrite(column[10], 0);
      digitalWrite(column[15], 0);
      delay(x);
      //b1
      turnColumnsOff();
      digitalWrite(column[4], 0);
      digitalWrite(column[5], 0);
      digitalWrite(column[10], 0);
      digitalWrite(column[11], 0);
      delay(x);
      //c1
      turnColumnsOff();
      digitalWrite(column[6], 0);
      digitalWrite(column[7], 0);
      digitalWrite(column[8], 0);
      digitalWrite(column[9], 0);
      delay(x);
      //d1
      turnColumnsOff();
      digitalWrite(column[3], 0);
      digitalWrite(column[6], 0);
      digitalWrite(column[9], 0);
      digitalWrite(column[12], 0);
      delay(x);
      //d2
      turnColumnsOff();
      digitalWrite(column[2], 0);
      digitalWrite(column[6], 0);
      digitalWrite(column[9], 0);
      digitalWrite(column[13], 0);
      delay(x);
      //d3
      turnColumnsOff();
      digitalWrite(column[1], 0);
      digitalWrite(column[5], 0);
      digitalWrite(column[10], 0);
      digitalWrite(column[14], 0);
      delay(x);
    }
  }
  //d4
  turnColumnsOff();
  digitalWrite(column[0], 0);
  digitalWrite(column[5], 0);
  digitalWrite(column[10], 0);
  digitalWrite(column[15], 0);
  delay(x);
}
//////////////////////////////////////////////////////spiral in and out
void spiralInAndOut()
{
  turnEverythingOn();
  int x = 60;
  for(int i = 0; i<6; i++)
  {
    //spiral in clockwise
    digitalWrite(column[0], 1);
    delay(x);
    digitalWrite(column[1], 1);
    delay(x);
    digitalWrite(column[2], 1);
    delay(x);
    digitalWrite(column[3], 1);
    delay(x);
    digitalWrite(column[7], 1);
    delay(x);
    digitalWrite(column[11], 1);
    delay(x);
    digitalWrite(column[15], 1);
    delay(x);
    digitalWrite(column[14], 1);
    delay(x);
    digitalWrite(column[13], 1);
    delay(x);
    digitalWrite(column[12], 1);
    delay(x);
    digitalWrite(column[8], 1);
    delay(x);
    digitalWrite(column[4], 1);
    delay(x);
    digitalWrite(column[5], 1);
    delay(x);
    digitalWrite(column[6], 1);
    delay(x);
    digitalWrite(column[10], 1);
    delay(x);
    digitalWrite(column[9], 1);
    delay(x);
    ///////////////////////////////////////spiral out counter clockwise
    digitalWrite(column[9], 0);
    delay(x);
    digitalWrite(column[10], 0);
    delay(x);
    digitalWrite(column[6], 0);
    delay(x);
    digitalWrite(column[5], 0);
    delay(x);
    digitalWrite(column[4], 0);
    delay(x);
    digitalWrite(column[8], 0);
    delay(x);
    digitalWrite(column[12], 0);
    delay(x);
    digitalWrite(column[13], 0);
    delay(x);
    digitalWrite(column[14], 0);
    delay(x);
    digitalWrite(column[15], 0);
    delay(x);
    digitalWrite(column[11], 0);
    delay(x);
    digitalWrite(column[7], 0);
    delay(x);
    digitalWrite(column[3], 0);
    delay(x);
    digitalWrite(column[2], 0);
    delay(x);
    digitalWrite(column[1], 0);
    delay(x);
    digitalWrite(column[0], 0);
    delay(x);
    ///////////////////////////////////////spiral in counter clock wise
    digitalWrite(column[0], 1);
    delay(x);
    digitalWrite(column[4], 1);
    delay(x);
    digitalWrite(column[8], 1);
    delay(x);
    digitalWrite(column[12], 1);
    delay(x);
    digitalWrite(column[13], 1);
    delay(x);
    digitalWrite(column[14], 1);
    delay(x);
    digitalWrite(column[15], 1);
    delay(x);
    digitalWrite(column[11], 1);
    delay(x);
    digitalWrite(column[7], 1);
    delay(x);
    digitalWrite(column[3], 1);
    delay(x);
    digitalWrite(column[2], 1);
    delay(x);
    digitalWrite(column[1], 1);
    delay(x);
    digitalWrite(column[5], 1);
    delay(x);
    digitalWrite(column[9], 1);
    delay(x);
    digitalWrite(column[10], 1);
    delay(x);
    digitalWrite(column[6], 1);
    delay(x);
    //////////////////////////////////////////////spiral out clock wise
    digitalWrite(column[6], 0);
    delay(x);
    digitalWrite(column[10], 0);
    delay(x);
    digitalWrite(column[9], 0);
    delay(x);
    digitalWrite(column[5], 0);
    delay(x);
    digitalWrite(column[1], 0);
    delay(x);
    digitalWrite(column[2], 0);
    delay(x);
    digitalWrite(column[3], 0);
    delay(x);
    digitalWrite(column[7], 0);
    delay(x);
    digitalWrite(column[11], 0);
    delay(x);
    digitalWrite(column[15], 0);
    delay(x);
    digitalWrite(column[14], 0);
    delay(x);
    digitalWrite(column[13], 0);
    delay(x);
    digitalWrite(column[12], 0);
    delay(x);
    digitalWrite(column[8], 0);
    delay(x);
    digitalWrite(column[4], 0);
    delay(x);
    digitalWrite(column[0], 0);
    delay(x);
  }
}
//////////////////////////////////////go through all leds one at a time
void goThroughAllLedsOneAtATime()
{
  int x = 15;
  turnEverythingOff();
  for(int y = 0; y<5; y++)
  {
    //0-3
    for(int count = 4; count != 0; count--)
    {
      digitalWrite(layer[count-1], 1);
      for(int i = 0; i<4; i++)
      {
        digitalWrite(column[i], 0);
        delay(x);
        digitalWrite(column[i], 1);
        delay(x);
      }
    digitalWrite(layer[count-1], 0);
    }
    //4-7
    for(int count = 0; count < 4; count++)
    {
      digitalWrite(layer[count], 1);
      for(int i = 4; i<8; i++)
      {
        digitalWrite(column[i], 0);
        delay(x);
        digitalWrite(column[i], 1);
        delay(x);
      }
    digitalWrite(layer[count], 0);
    }
    //8-11
    for(int count = 4; count != 0; count--)
    {
      digitalWrite(layer[count-1], 1);
      for(int i = 8; i<12; i++)
      {
        digitalWrite(column[i], 0);
        delay(x);
        digitalWrite(column[i], 1);
        delay(x);
      }
    digitalWrite(layer[count-1], 0);
    }
    //12-15
    for(int count = 0; count < 4; count++)
    {
      digitalWrite(layer[count], 1);
      for(int i = 12; i<16; i++)
      {
        digitalWrite(column[i], 0);
        delay(x);
        digitalWrite(column[i], 1);
        delay(x);
      }
    digitalWrite(layer[count], 0);
    }
  }
}





19 days ago | Blogs | by: tarantula3
Share
PREVIOUS BLOG
NEXT BLOG











Last tutorials

Cool 150V Nixie Watch - DIY
1500W Triple Phase Rectifier for wind turbine
Plasma Toroid Generator, whaaat?
Homemade MSLA printer ESP32 Arduino and TFT display
DIY High Quality Microphone JLI2555 capsule

ADVERTISERS



Affiliate Disclosure

ADVERTISERS








Curso Arduino Online nivel Intermedio
