ELECTRONOOBINO

Una publicación compartida de ELECTRONOOBS®️ (@electronoobs) el


ELECTRONOOBINO - part list


Help me by sharing this post


1 x ATMega328p- PU LINK eBay
1 x ATMega328p- PU SOCKET LINK eBay
1 x FT232RLSSOP LINK eBay
    OR: 1 x CH340 LINK eBay
1 x AMS1117-5.0V LINK eBay
    OR: 1 x MC33269DR2-5 LINK eBay
1 x 16MHz crystal LINK eBay
1 x MINI-B USB conn LINK eBay
1 x smd push button LINK eBay
4 x female pins LINK eBay
1 x M7 diode LINK eBay
1 x 500mA fuse LINK eBay
1 x smd switch LINK eBay
3 x 0805 LEDs LINK eBay
5 x 0805 1k resistor LINK eBay
1 x 0805 10k resistor LINK eBay
2 x 0805 22pF capacitor LINK eBay
3 x 0805 100nF capacitor LINK eBay
2 x 47uF SMD capacitor LINK eBay
1 x 0805 1uF capacitor LINK eBay


Wire, soldering iron, solder, etc...

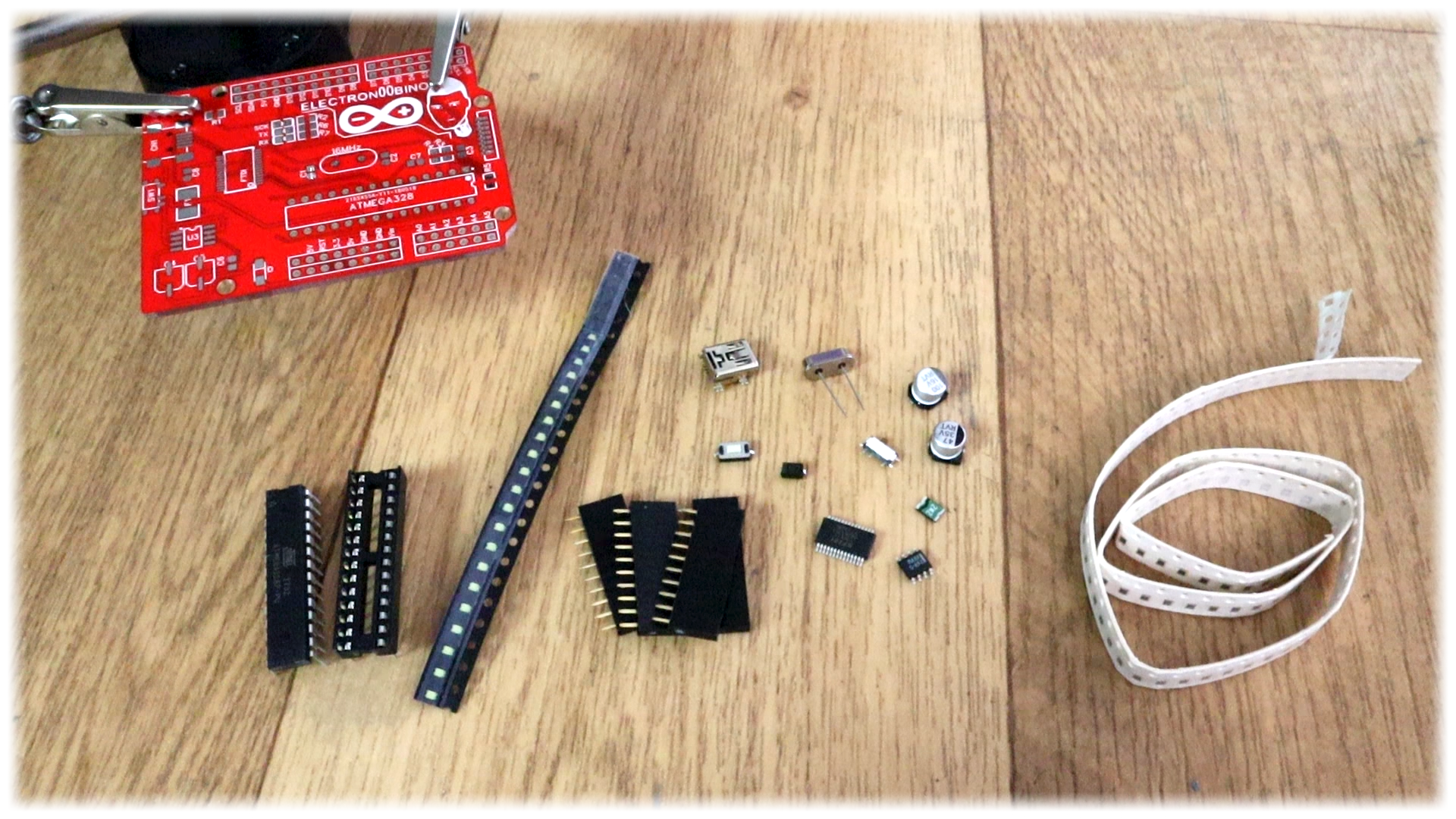

Arduino UNO parts
