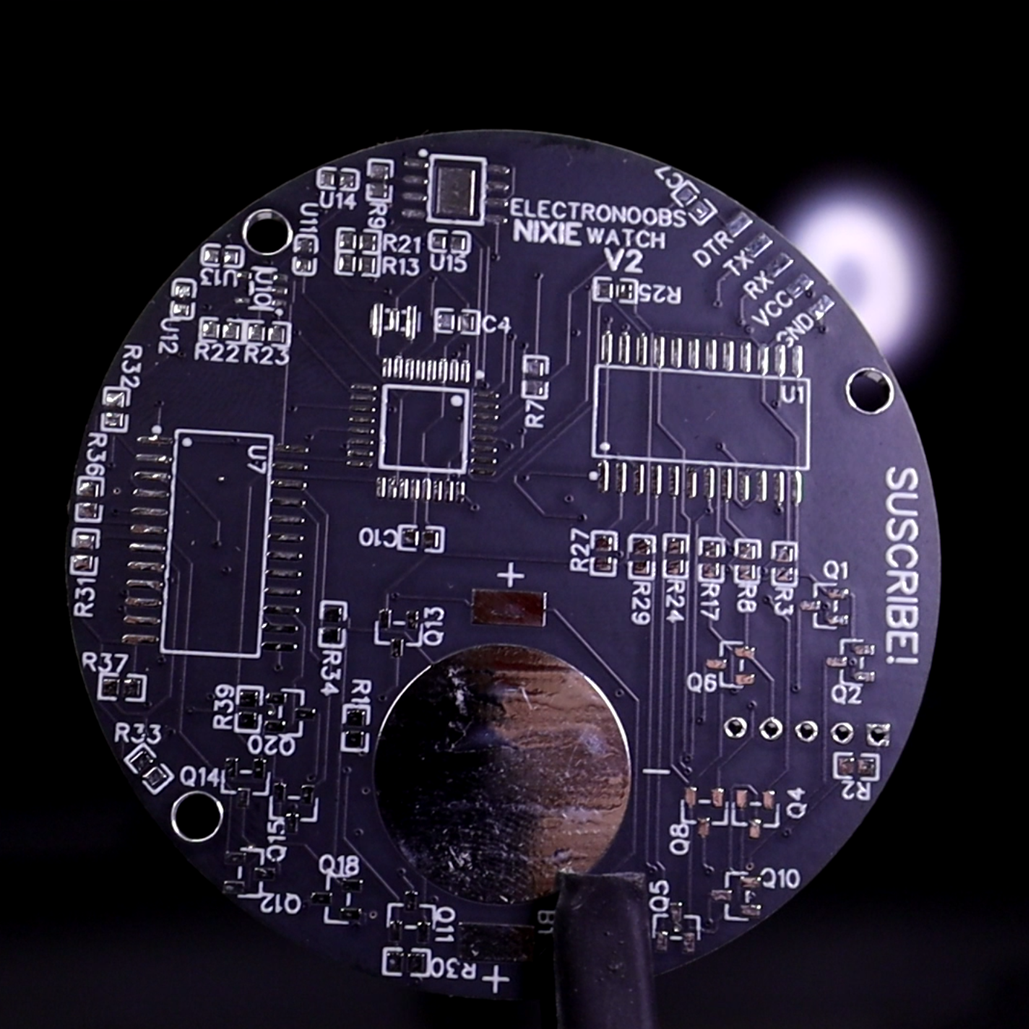

!!!This is a downloadable product. Buy it once and then download it all the times you want! I hope you understand this is NOT the assembled PCB. You receive the GERBER files for the board and information for everything you need to make this this version of the Nixie Tube Watch V2.2.

*Once you make the order, go to my account → DOWNLOADS,  select the order and then click the Download link on the right side and the file will be downloaded in a .ZIP file.

Specifications

1. Model Name: Nixie Tube Watch
2. Version: 2.2
3. Size: 62mm*89mm
4. PCB weight: <40g
5. Soldermask color: Any
6. PCB Thickness: 1.6mm
7. Input: 4.2V
8. DS3231 RTC
9. MPU6050 IMU
10. Buzzer
11. Battery Charger + USB
12. 150V Module

Download includes:

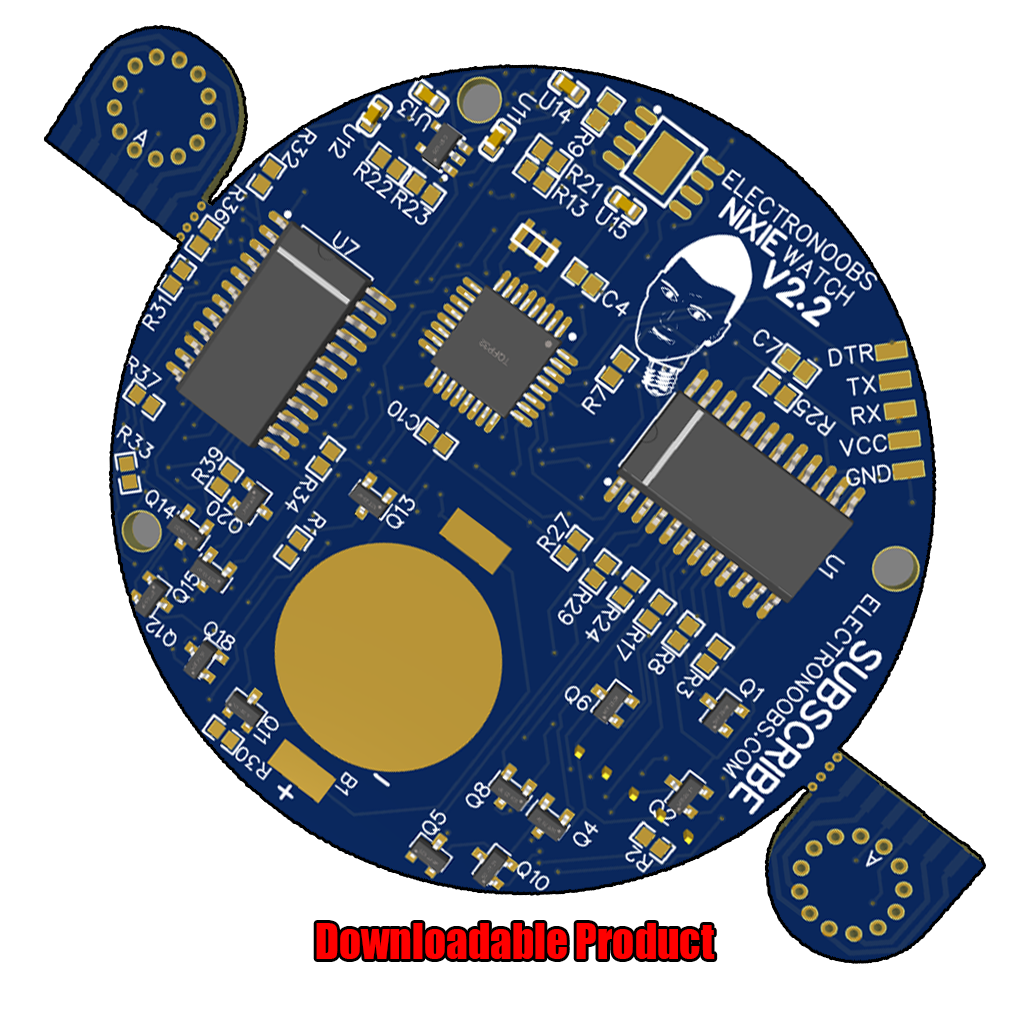

1. 1 x GERBER files for Nixie Tube Watch V2.2
2.     + 1 x GERBER files for Nixie Tube Watch V2.1

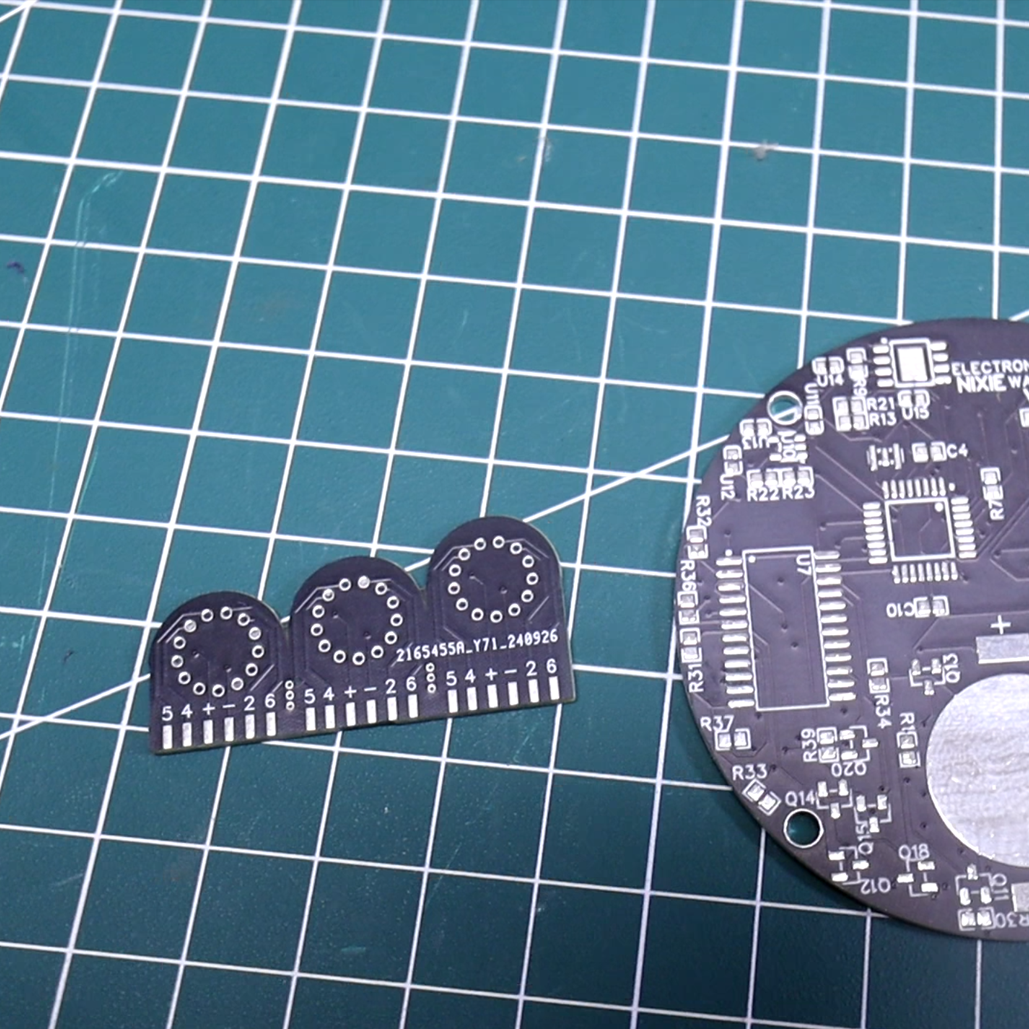

3. 1 x GERBER files for IN-16 Nixie Tube Socket
4. 1 x STL files for 3D printed case

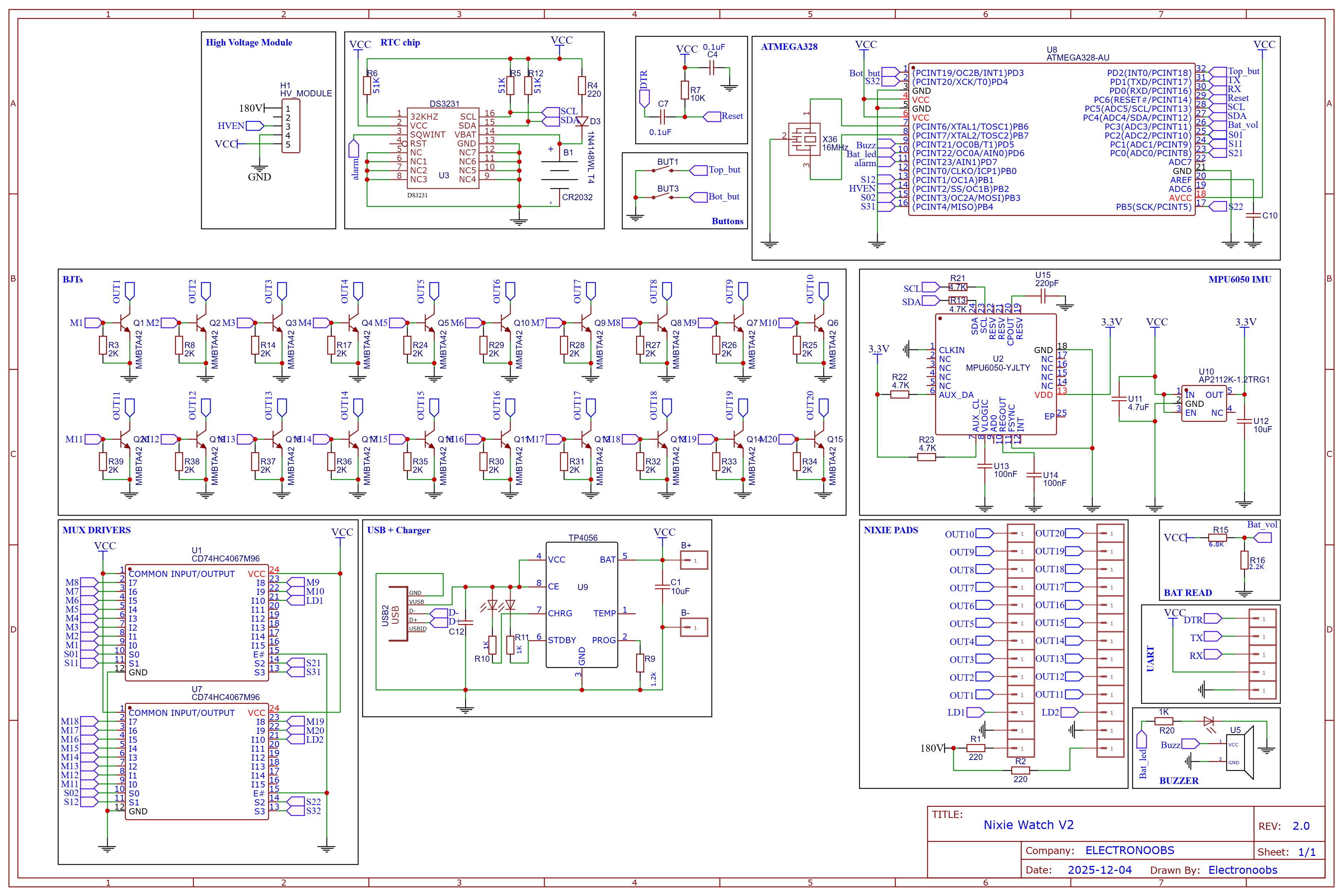

5. Schematic
6. Watch Arduino Code
7. Part List (updated on 05/03/2026)
8. 1 x Tutorial HERE
