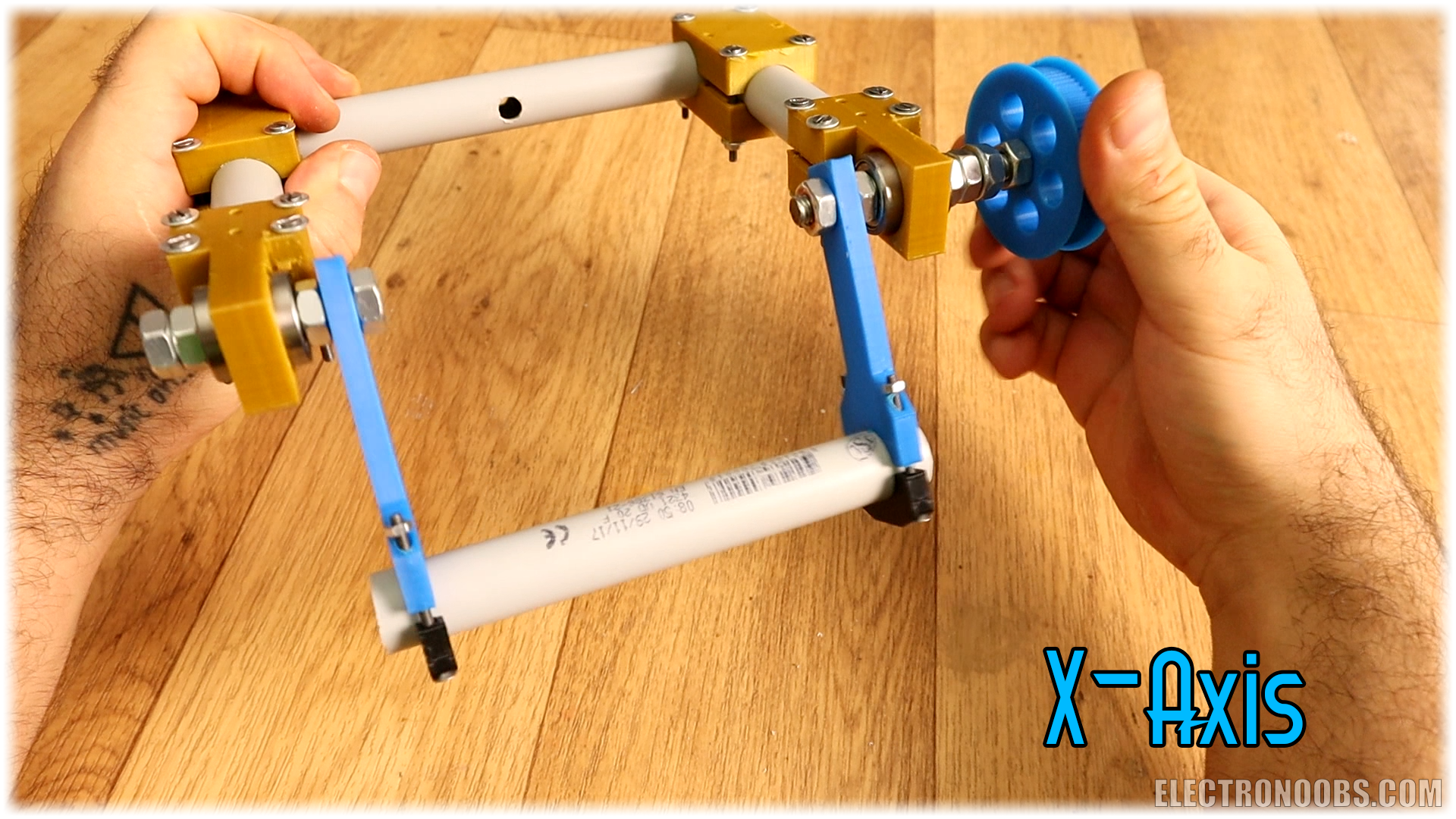

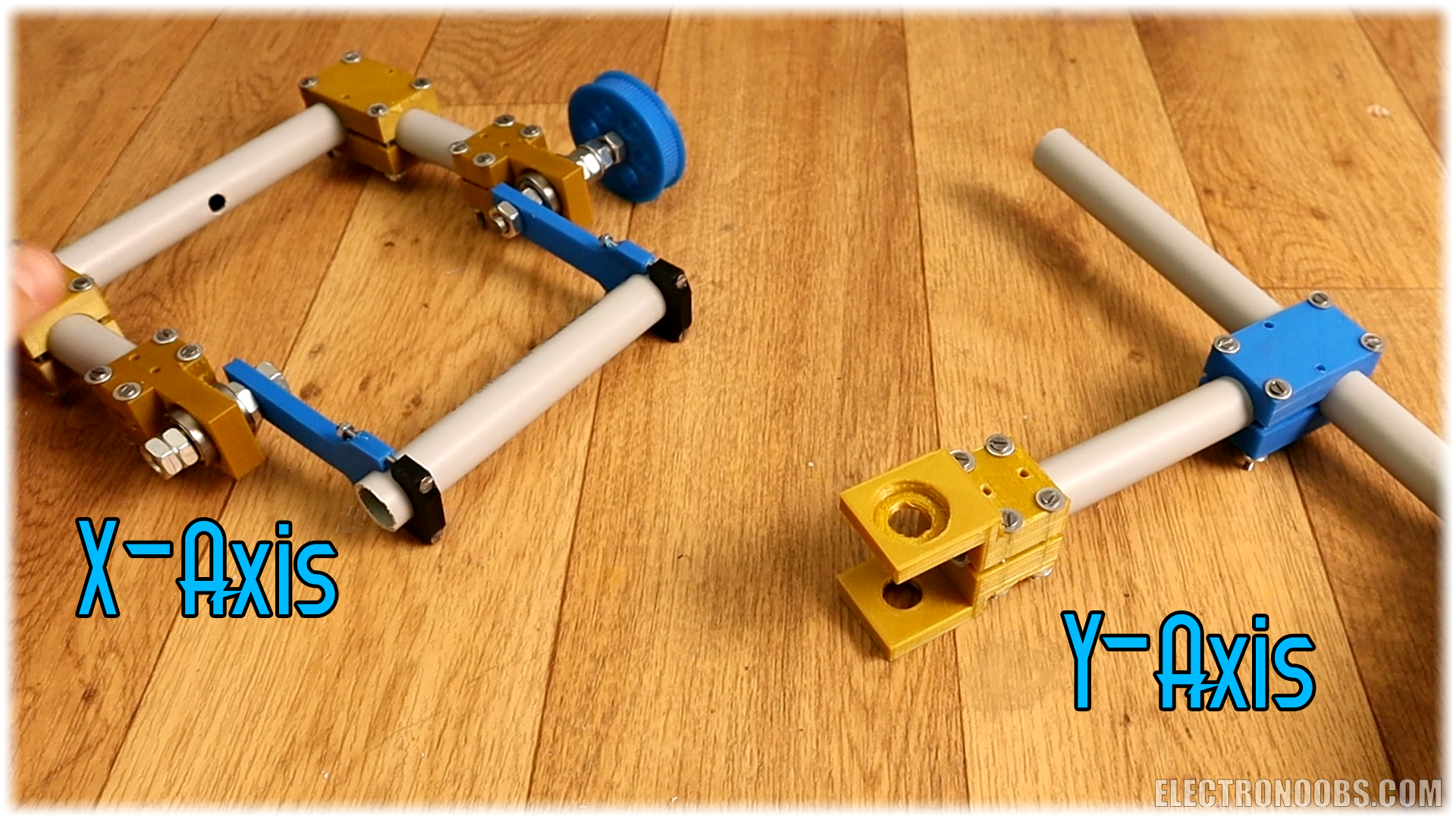

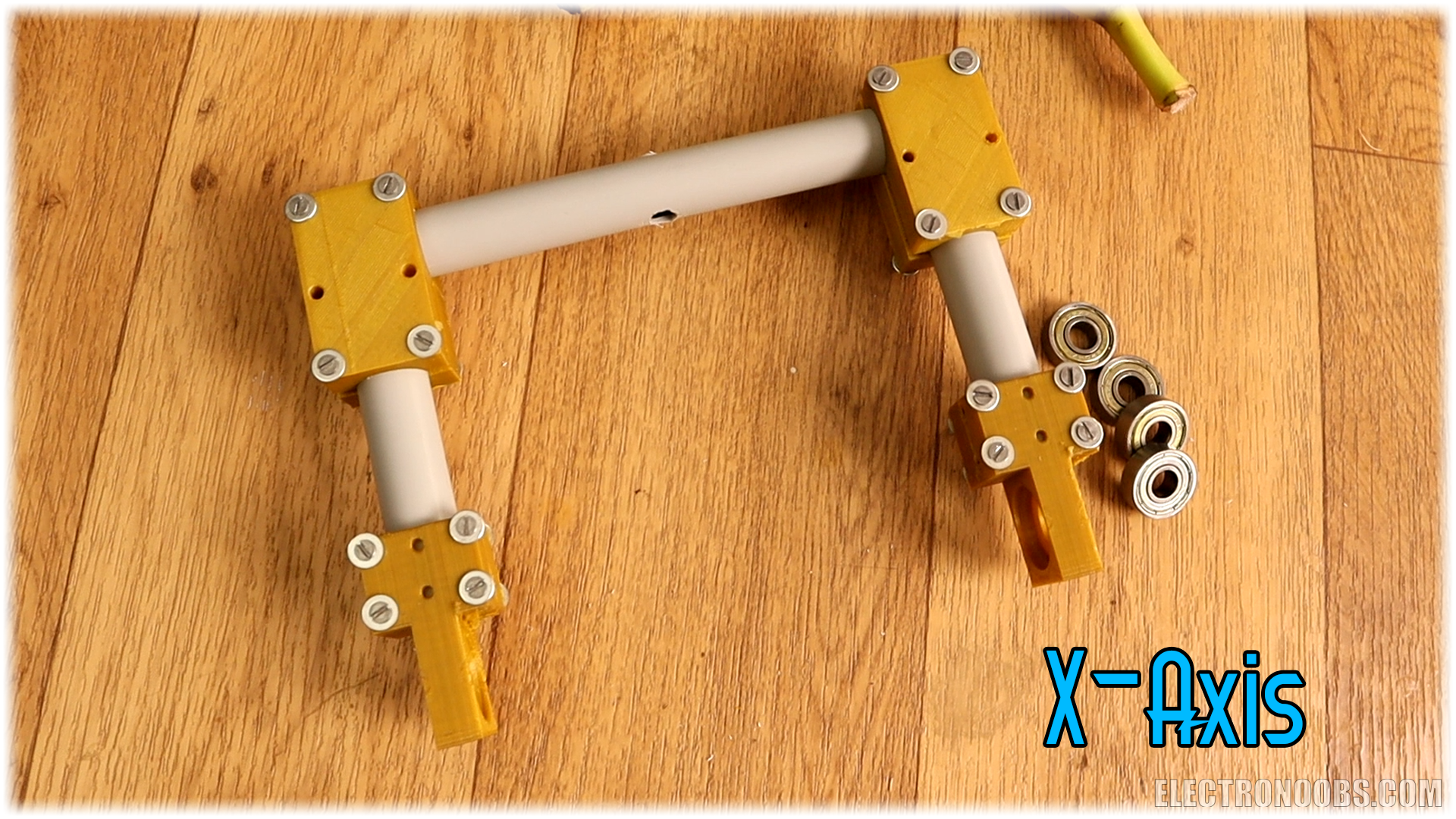

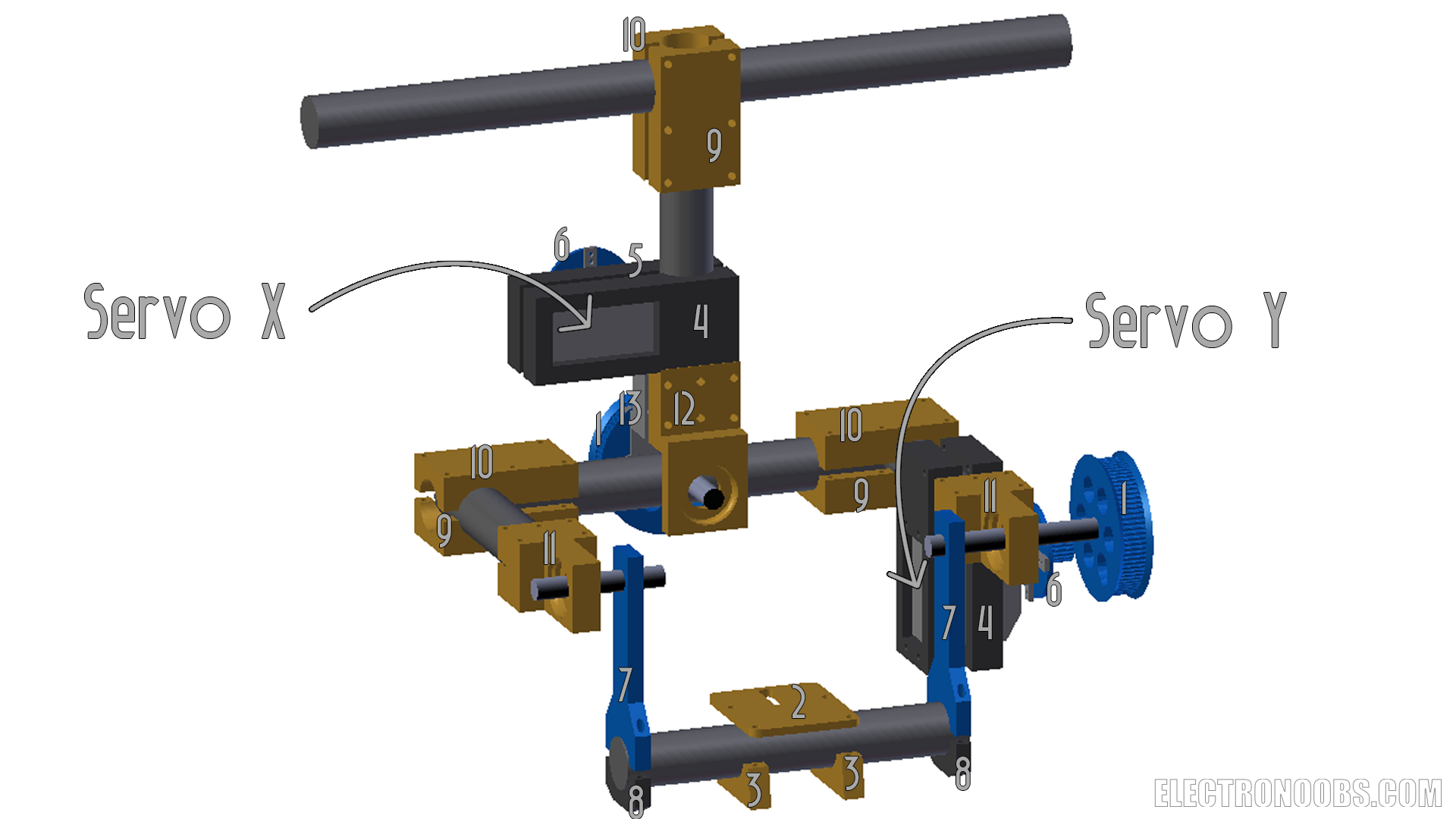

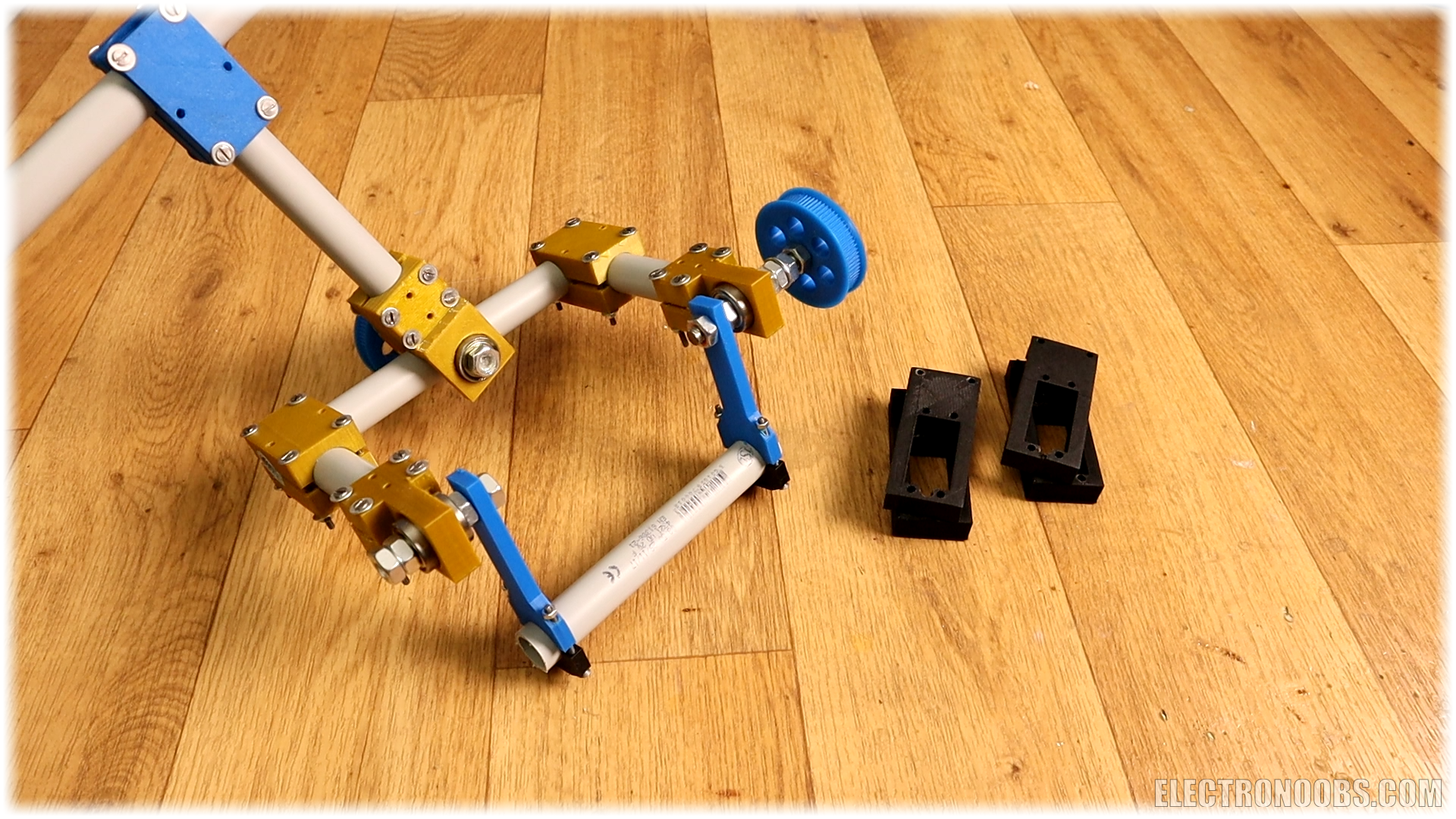

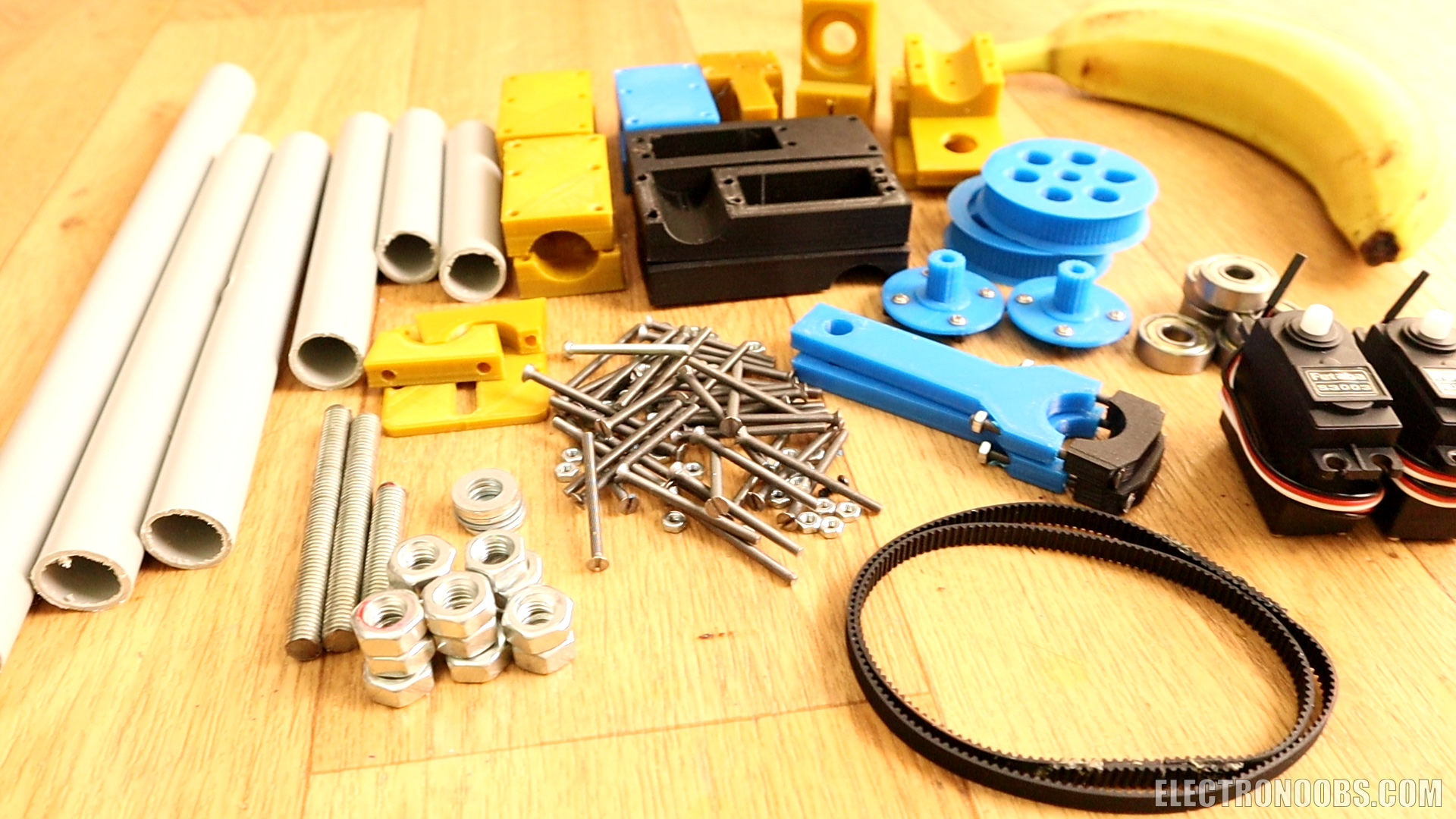

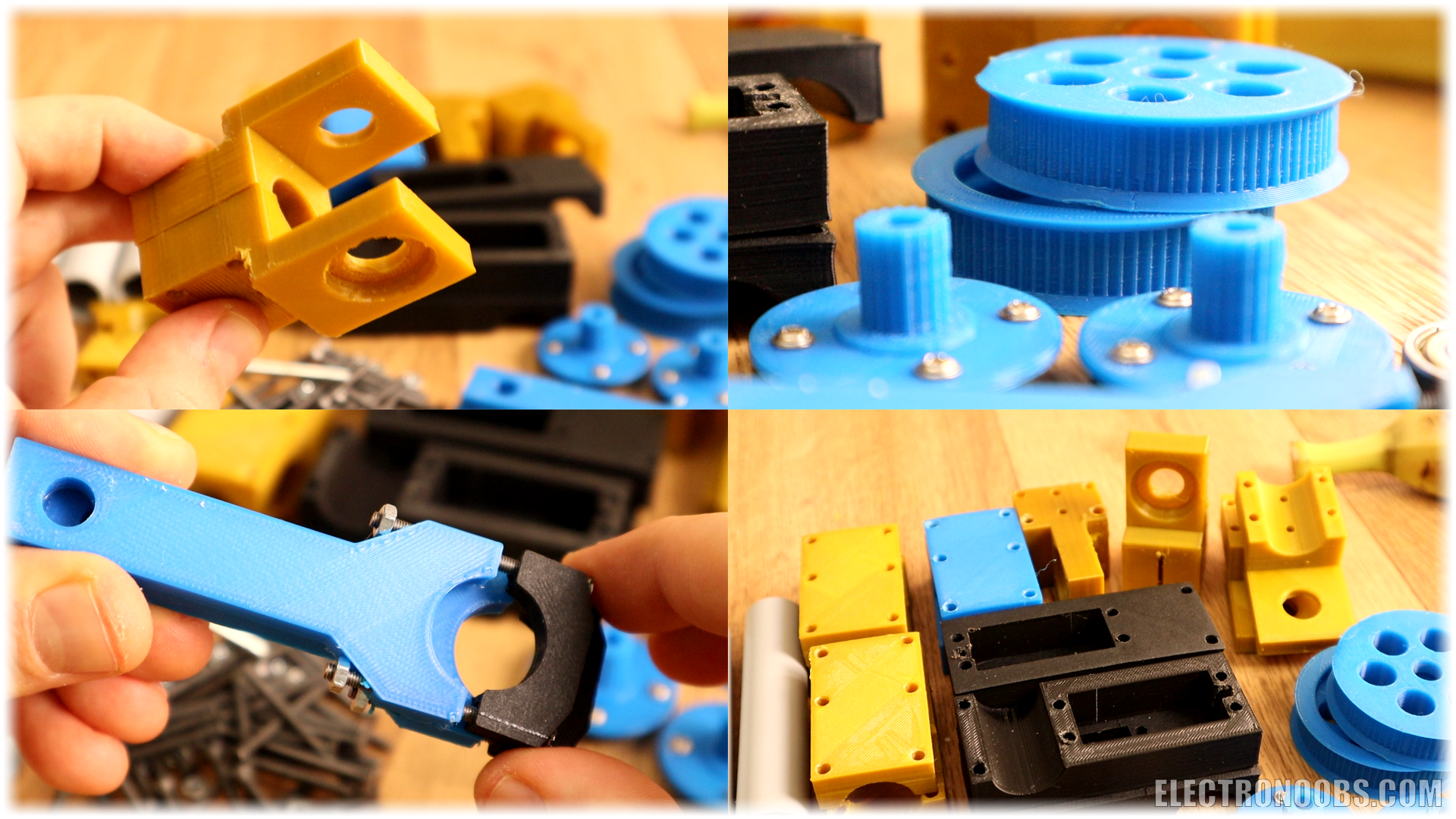

@tutorial: Homemade Servo based gimbal project with 3D printed parts

/* http://www.youtube.com/c/electronoobs
 *

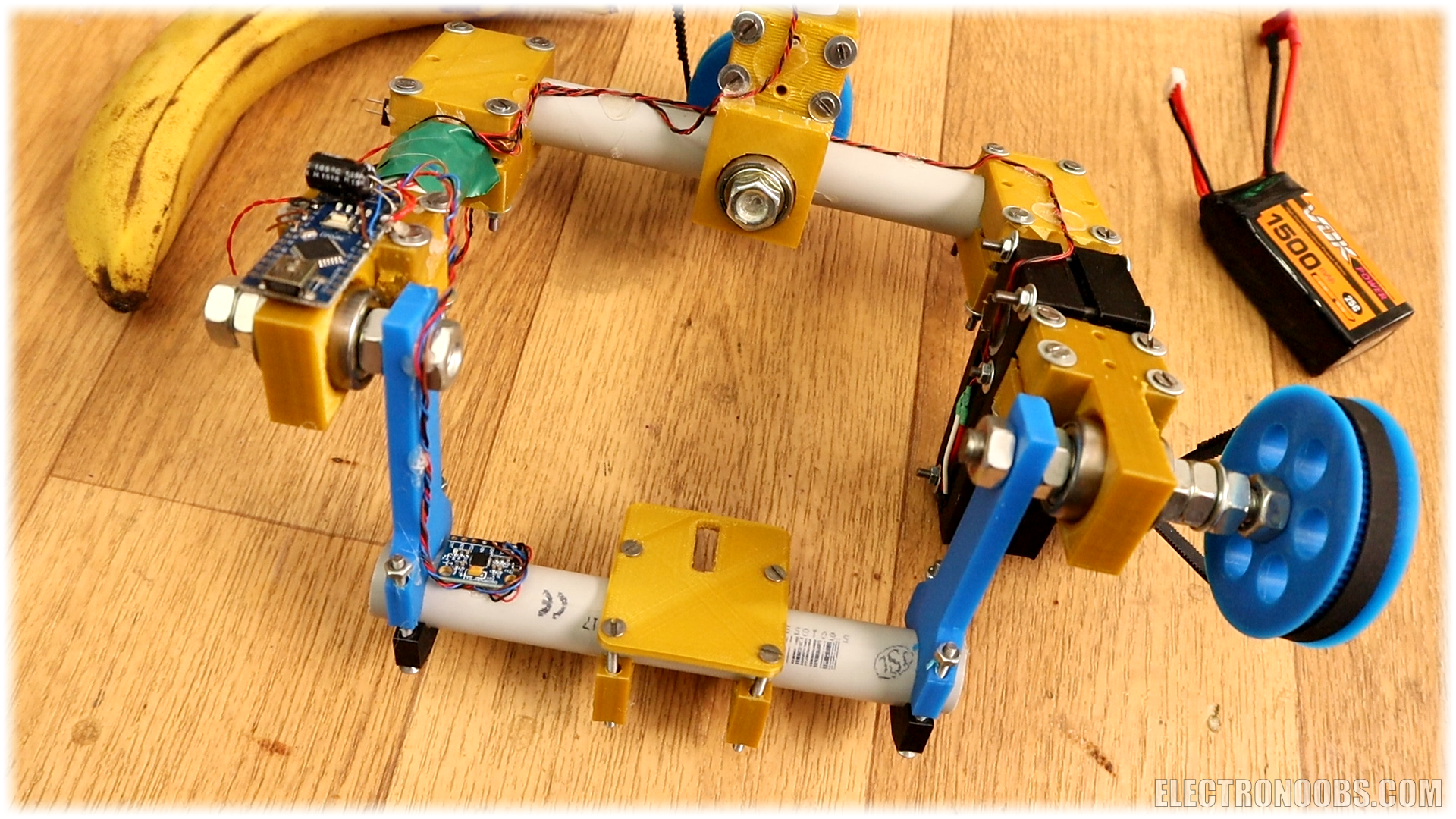

 * This is an example for the 3D printed gimbal project. It uses
 * the MPU6050 and two S3003 servo motors. This is the PID code for the gimbal. *
 * Arduino pin    |   MPU6050
 * 5V             |   Vcc
 * GND            |   GND
 * A4             |   SDA
 * A5             |   SCL

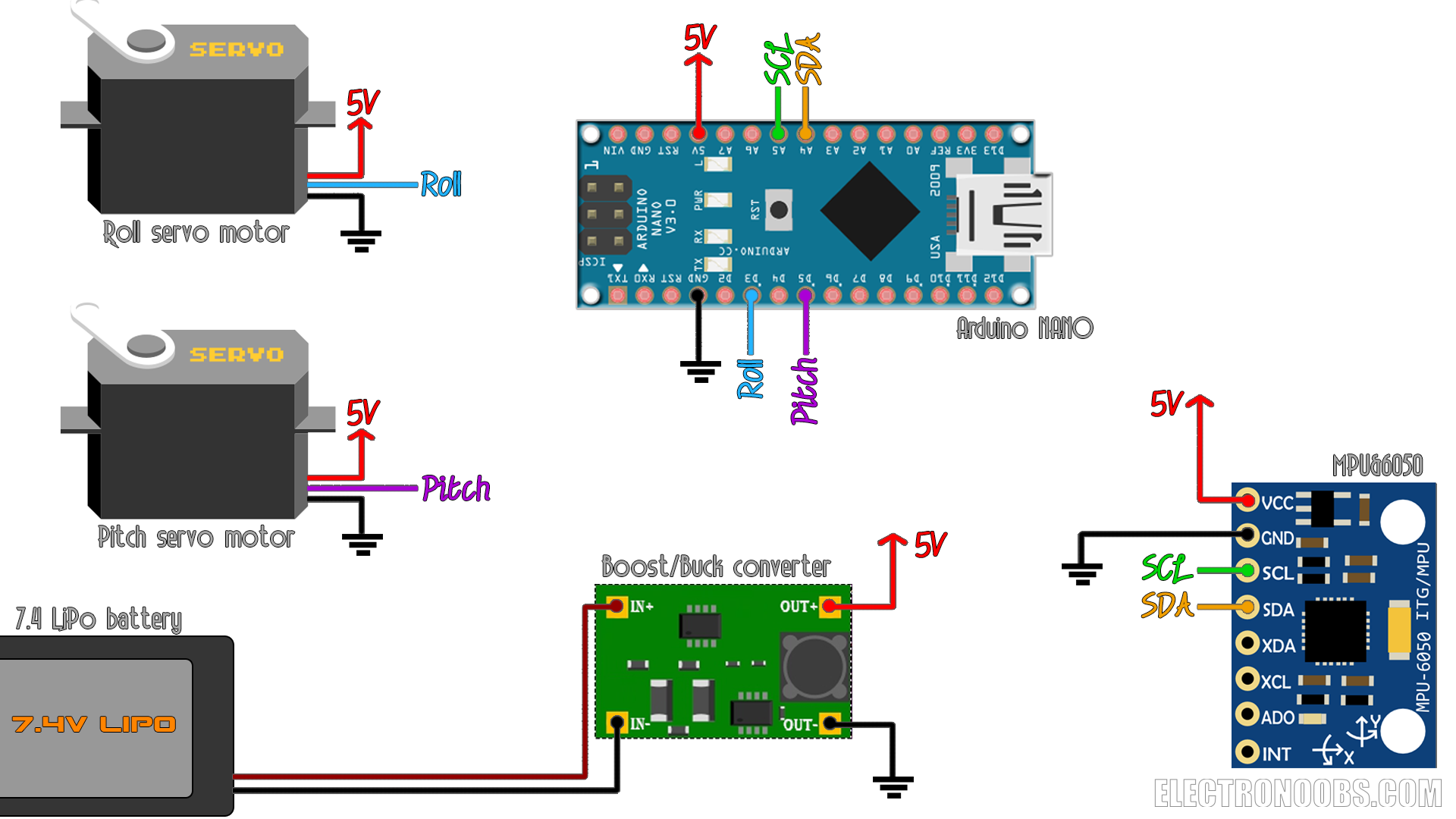

 * Scheematic: https://www.electronoobs.com/eng_arduino_tut46_sch1.php
 */

//Includes
#include <Wire.h>
#include <Servo.h>

Servo pitch;
Servo roll;

/*MPU-6050 gives you 16 bits data so you have to create some float constants
*to store the data for accelerations and gyro*/

//Gyro Variables
float elapsedTime, time, timePrev;            //Variables for time control
int gyro_error=0;                             //We use this variable to only calculate once the gyro data error
float Gyr_rawX, Gyr_rawY, Gyr_rawZ;           //Here we store the raw data read
float Gyro_angle_x, Gyro_angle_y;             //Here we store the angle value obtained with Gyro data
float Gyro_raw_error_x, Gyro_raw_error_y;     //Here we store the initial gyro data error

//Acc Variables
int acc_error=0;                              //We use this variable to only calculate once the Acc data error
float rad_to_deg = 180/3.141592654;           //This value is for pasing from radians to degrees values
float Acc_rawX, Acc_rawY, Acc_rawZ;           //Here we store the raw data read
float Acc_angle_x, Acc_angle_y;               //Here we store the angle value obtained with Acc data
float Acc_angle_error_x, Acc_angle_error_y;   //Here we store the initial Acc data error

float Total_angle_x, Total_angle_y;           //Here we store the final total angle

//More variables for the code...
int i;
int mot_activated=0;
long activate_count=0;
long des_activate_count=0;

//////////////////////////////PID FOR ROLL///////////////////////////
float roll_PID, pwm_L_F, pwm_L_B, pwm_R_F, pwm_R_B, roll_error, roll_previous_error;
float roll_pid_p=0;
float roll_pid_i=0;
float roll_pid_d=0;
///////////////////////////////ROLL PID CONSTANTS////////////////////
double roll_kp=4;//3.55
double roll_ki=0.1;//0.003
double roll_kd=0.1;//2.05
float roll_desired_angle = 0;     //This is the angle in which we whant the

//////////////////////////////PID FOR PITCH//////////////////////////
float pitch_PID, pitch_error, pitch_previous_error;
float pitch_pid_p=0;
float pitch_pid_i=0;
float pitch_pid_d=0;
///////////////////////////////PITCH PID CONSTANTS///////////////////
double pitch_kp=4;//3.55
double pitch_ki=0.1;//0.003
double pitch_kd=0.1;//2.05
float pitch_desired_angle = 0;     //This is the angle in which we want the gimbal to stay (for now it will be 0) Joystick for future versions

float PWM_pitch, PWM_roll;

void setup() {
  pitch.attach(5); //servo motor for pitch
  roll.attach(3);  //servo motor for roll


  Wire.begin();
  //begin the wire comunication
  Wire.beginTransmission(0x68);           //begin, Send the slave adress (in this case 68)
  Wire.write(0x6B);                       //make the reset (place a 0 into the 6B register)
  Wire.write(0x00);
  Wire.endTransmission(true);             //end the transmission
  //Gyro config
  Wire.beginTransmission(0x68);           //begin, Send the slave adress (in this case 68)
  Wire.write(0x1B);                       //We want to write to the GYRO_CONFIG register (1B hex)
  Wire.write(0x10);                       //Set the register bits as 00010000 (1000dps full scale)
  Wire.endTransmission(true);             //End the transmission with the gyro
  //Acc config
  Wire.beginTransmission(0x68);           //Start communication with the address found during search.
  Wire.write(0x1C);                       //We want to write to the ACCEL_CONFIG register
  Wire.write(0x10);                       //Set the register bits as 00010000 (+/- 8g full scale range)
  Wire.endTransmission(true);

  //Serial.begin(9600);                     //Remember to set this same baud rate to the serial monitor
  time = millis();                        //Start counting time in milliseconds
}//end of setup void






void loop() {

  /////////////////////////////I M U/////////////////////////////////////
  timePrev = time;  // the previous time is stored before the actual time read
  time = millis();  // actual time read
  elapsedTime = (time - timePrev) / 1000;
  /*The tiemeStep is the time that elapsed since the previous loop.
  *This is the value that we will use in the formulas as "elapsedTime"
  *in seconds. We work in ms so we have to divide the value by 1000
  to obtain seconds*/
  /*Reed the values that the accelerometre gives.
  * We know that the slave adress for this IMU is 0x68 in
  * hexadecimal. For that in the RequestFrom and the
  * begin functions we have to put this value.*/
 //////////////////////////////////////Gyro read/////////////////////////////////////
  Wire.beginTransmission(0x68);            //begin, Send the slave adress (in this case 68)
  Wire.write(0x43);                        //First adress of the Gyro data
  Wire.endTransmission(false);
  Wire.requestFrom(0x68,4,true);           //We ask for just 4 registers
  Gyr_rawX=Wire.read()<<8|Wire.read();     //Once again we shif and sum
  Gyr_rawY=Wire.read()<<8|Wire.read();
  /*Now in order to obtain the gyro data in degrees/seconds we have to divide first
  the raw value by 32.8 because that's the value that the datasheet gives us for a 1000dps range*/
  /*---X---*/
  Gyr_rawX = (Gyr_rawX/32.8);
  /*---Y---*/
  Gyr_rawY = (Gyr_rawY/32.8);
  /*Now we integrate the raw value in degrees per seconds in order to obtain the angle
  * If you multiply degrees/seconds by seconds you obtain degrees */
    /*---X---*/
  Gyro_angle_x = Gyr_rawX*elapsedTime;
  /*---X---*/
  Gyro_angle_y = Gyr_rawY*elapsedTime;




  //////////////////////////////////////Acc read/////////////////////////////////////
  Wire.beginTransmission(0x68);     //begin, Send the slave adress (in this case 68)
  Wire.write(0x3B);                 //Ask for the 0x3B register- correspond to AcX
  Wire.endTransmission(false);      //keep the transmission and next
  Wire.requestFrom(0x68,6,true);    //We ask for next 6 registers starting withj the 3B
  /*We have asked for the 0x3B register. The IMU will send a brust of register.
  * The amount of register to read is specify in the requestFrom function.
  * In this case we request 6 registers. Each value of acceleration is made out of
  * two 8bits registers, low values and high values. For that we request the 6 of them
  * and just make then sum of each pair. For that we shift to the left the high values
  * register (<<) and make an or (|) operation to add the low values.
  If we read the datasheet, for a range of+-8g, we have to divide the raw values by 4096*/
  Acc_rawX=(Wire.read()<<8|Wire.read())/4096.0 ; //each value needs two registres
  Acc_rawY=(Wire.read()<<8|Wire.read())/4096.0 ;
  Acc_rawZ=(Wire.read()<<8|Wire.read())/4096.0 ;
 /*Now in order to obtain the Acc angles we use euler formula with acceleration values
 after that we substract the error value found before*/
 /*---X---*/
 Acc_angle_x = (atan((Acc_rawY)/sqrt(pow((Acc_rawX),2) + pow((Acc_rawZ),2)))*rad_to_deg) ;
 /*---Y---*/
 Acc_angle_y = (atan(-1*(Acc_rawX)/sqrt(pow((Acc_rawY),2) + pow((Acc_rawZ),2)))*rad_to_deg) ;


 //////////////////////////////////////Total angle and filter/////////////////////////////////////
 /*---X axis angle---*/
 Total_angle_x = 0.98 *(Total_angle_x + Gyro_angle_x) + 0.02*Acc_angle_x;
 /*---Y axis angle---*/
 Total_angle_y = 0.98 *(Total_angle_y + Gyro_angle_y) + 0.02*Acc_angle_y;

    //Uncomment this below for debug
    /*
    Serial.print("GyroX angle: ");
    Serial.print(Total_angle_x);
    Serial.print("   |   ");
    Serial.print("GyroY angle: ");
    Serial.println(Total_angle_y);*/



    /*///////////////////////////P I D///////////////////////////////////*/
    roll_desired_angle = 0;   //The angle we want the gimbal to stay is 0 and 0 for both axis for now...
    pitch_desired_angle = 0;

    /*First calculate the error between the desired angle and
    *the real measured angle*/
    roll_error = Total_angle_y - roll_desired_angle;
    pitch_error = Total_angle_x - pitch_desired_angle;
    /*Next the proportional value of the PID is just a proportional constant
    *multiplied by the error*/
    roll_pid_p = roll_kp*roll_error;
    pitch_pid_p = pitch_kp*pitch_error;
    /*The integral part should only act if we are close to the
    desired position but we want to fine tune the error. That's
    why I've made a if operation for an error between -2 and 2 degree.
    To integrate we just sum the previous integral value with the
    error multiplied by  the integral constant. This will integrate (increase)
    the value each loop till we reach the 0 point*/
    if(-3 < roll_error <3)
    {
      roll_pid_i = roll_pid_i+(roll_ki*roll_error);
    }
    if(-3 < pitch_error < 3)
    {
      pitch_pid_i = pitch_pid_i+(pitch_ki*pitch_error);
    }
    /*The last part is the derivate. The derivate acts upon the speed of the error.
    As we know the speed is the amount of error that produced in a certain amount of
    time divided by that time. For taht we will use a variable called previous_error.
    We substract that value from the actual error and divide all by the elapsed time.
    Finnaly we multiply the result by the derivate constant*/
    roll_pid_d = roll_kd*((roll_error - roll_previous_error)/elapsedTime);
    pitch_pid_d = pitch_kd*((pitch_error - pitch_previous_error)/elapsedTime);
    /*The final PID values is the sum of each of this 3 parts*/
    roll_PID = roll_pid_p + roll_pid_i + roll_pid_d ;
    pitch_PID = pitch_pid_p + pitch_pid_i + pitch_pid_d ;
    /*We know taht the min value of PWM signal is -90 (usingservo.write) and the max is 90. So that
    tells us that the PID value can/s oscilate more than -90 and 90 so we constrain those values below*/
    if(roll_PID < -90){roll_PID = -90;}
    if(roll_PID > 90) {roll_PID = 90; }
    if(pitch_PID < -90){pitch_PID = -90;}
    if(pitch_PID > 90) {pitch_PID = 90;}

    roll_previous_error = roll_error;     //Remember to store the previous error.
    pitch_previous_error = pitch_error;   //Remember to store the previous error.

    PWM_pitch = 90 + pitch_PID;           //Angle for each motor is 90 plus/minus the PID value
    PWM_roll = 90 - roll_PID;

    pitch.write(PWM_pitch);               //Finally we write the angle to the servos
    roll.write(PWM_roll);
}//end of void loop
