!!! This is a downloadable product. Buy it once and then download it all the times you want! I hope you understand this is NOT the assembled PCB. You receive the GERBER files for the board and information for everything you need to make this version of the GRBL controller baord for CNC machines.

*Once you make the order, go to my account → DOWNLOADS,  select the order and then click the Download link on the right side and the file will be downloaded in a .ZIP file.

Specifications

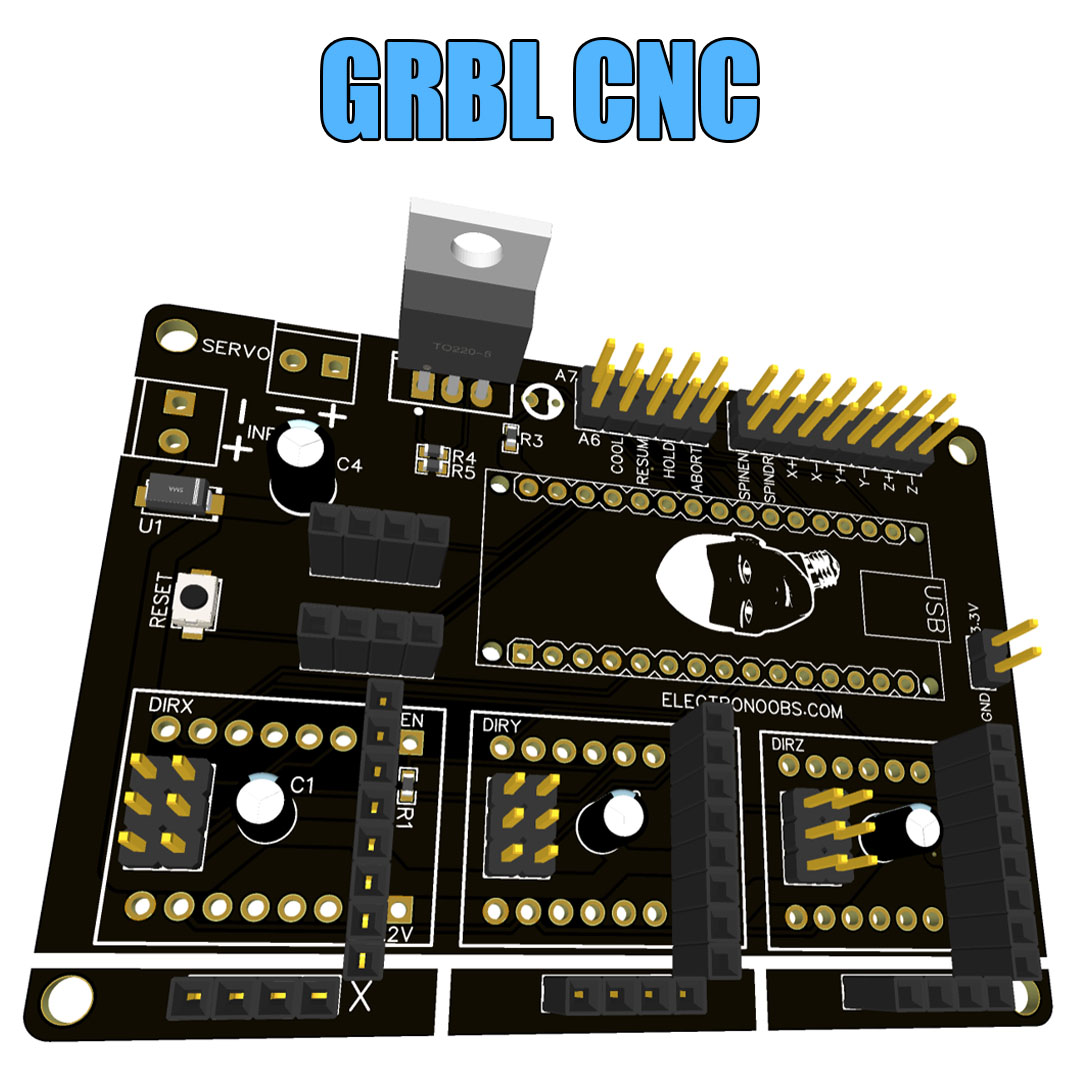

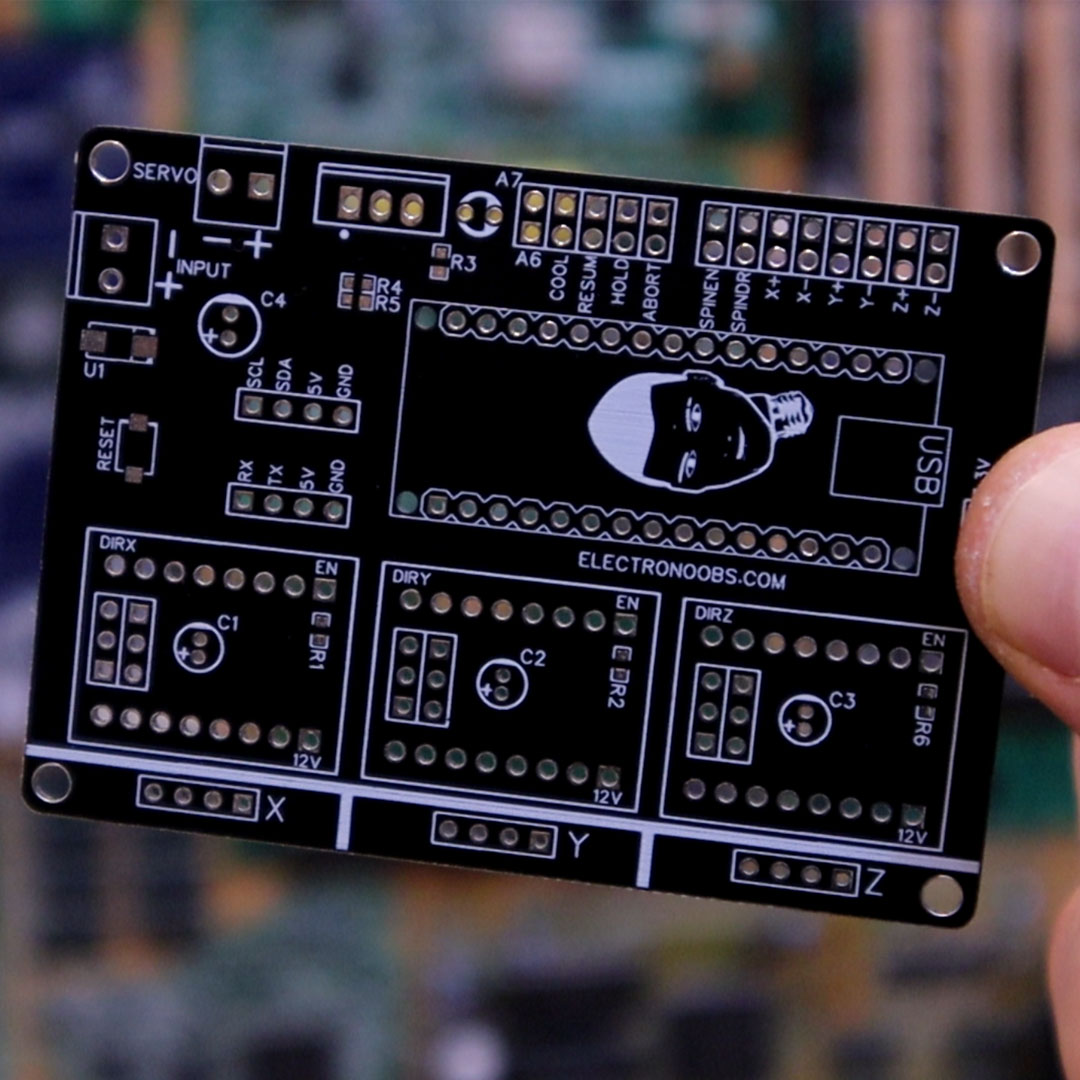

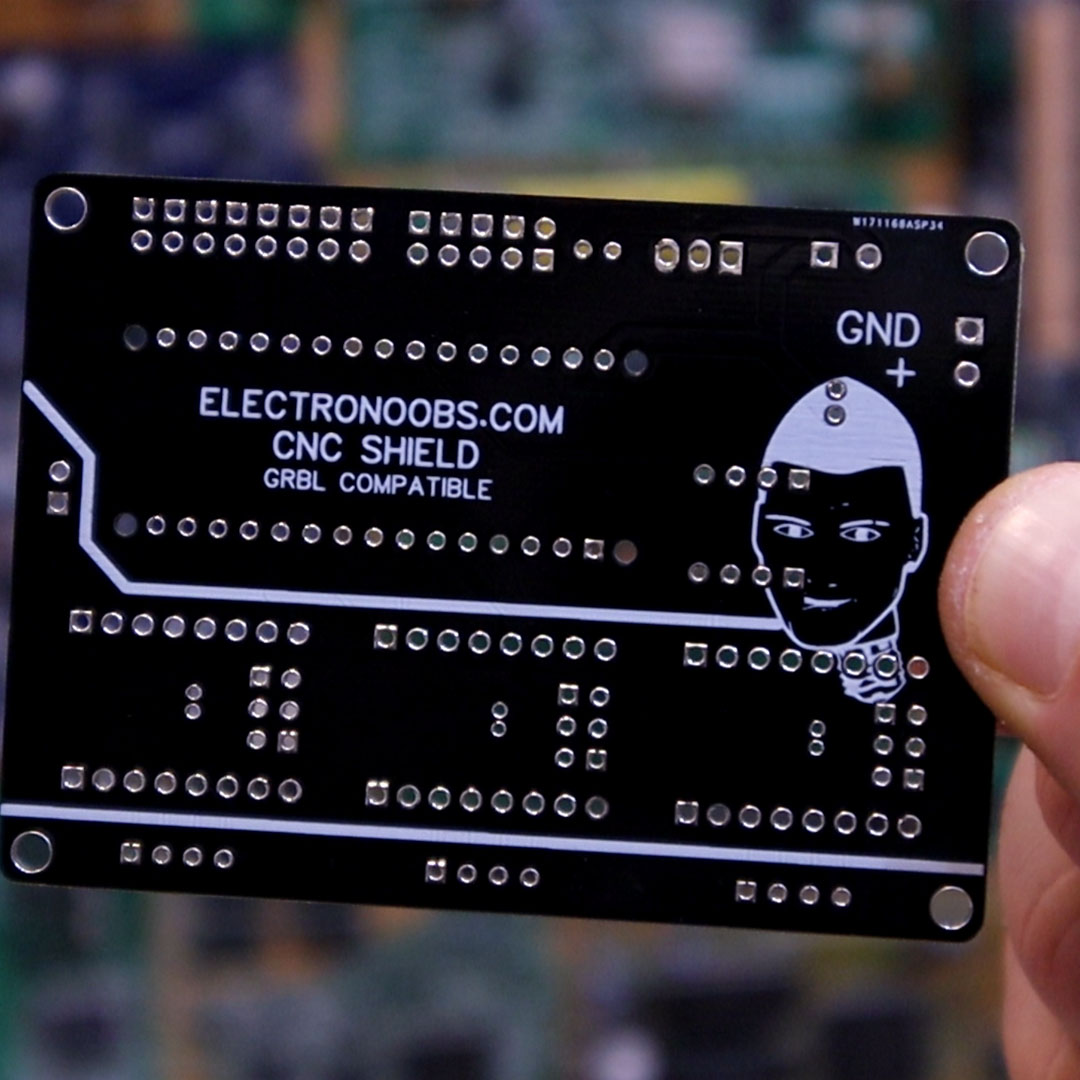

1. Model Name: ELECTRONOOBS NANO GBRL Shield
2. Version: 1.0
3. Size: 80mm*58mm
4. PCB weight: <5g
5. Soldermask color: Any
6. PCB Thickness: 1.2mm
7. Input voltage: 12V DC
8. Input Current: >2A
9. Operating temperature: -40 Celsius to +85 Celsius

Characteristics

1. Axis: 3-axis (XYZ)
2. Servo control
3. Spindle control with MOSFET
4. Limit switches for all 3 axis
5. Serial i2c port
6. Comapatible drivers: A4988, TMC2208, etc

Package includes:

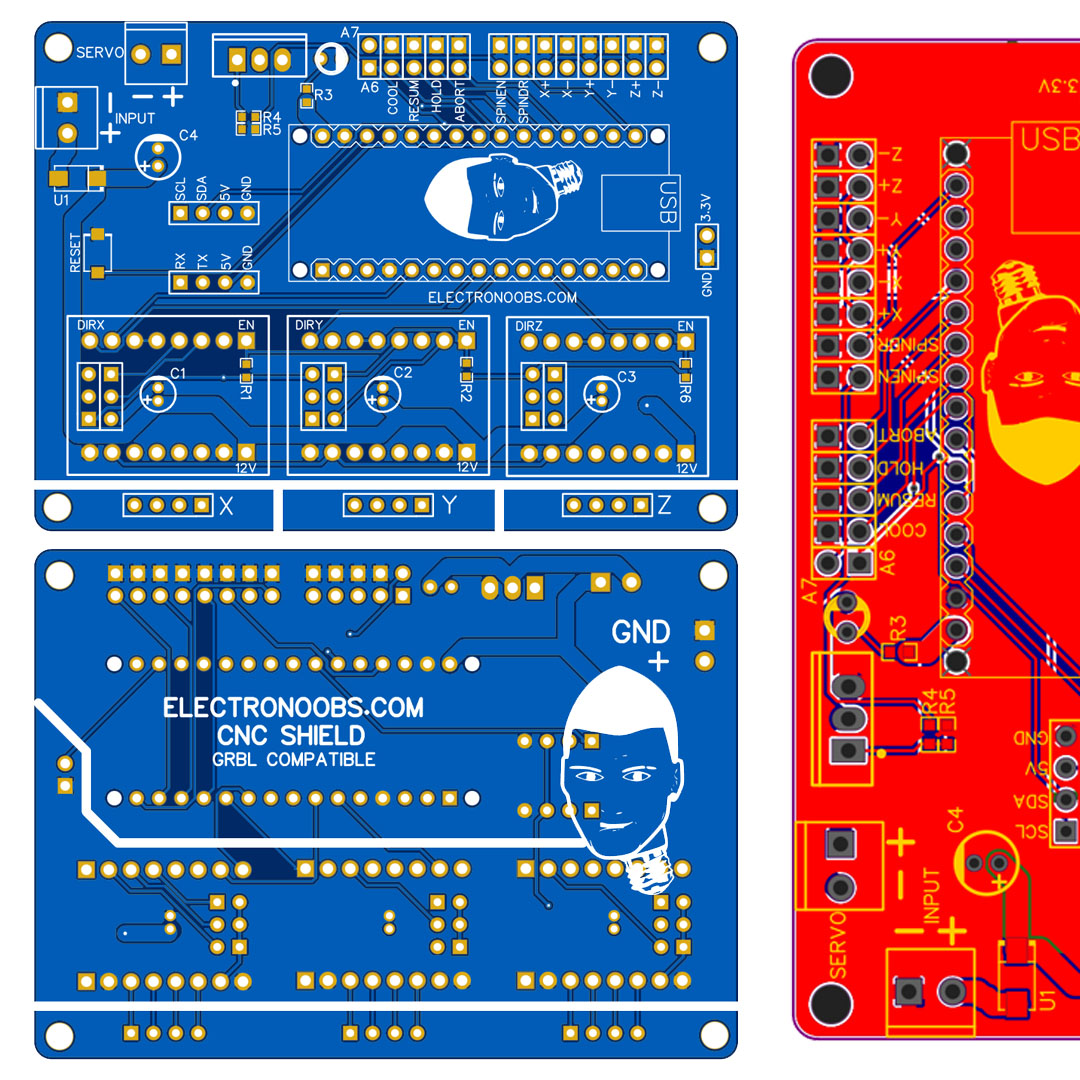

1. 1 x GERBER files for PCB V1.0
2. 1 x Schematic
3. 1 x Part List

Video Here

Part List

1. Arduino NANO: LINK Aliexpress
2. 2 x TMC2208/TMC2225/A4988 drivers: LINK Aliexpress
3. 2 x 2P PCB Connectors: LINK Aliexpress
4. 3 x 22uF Capacitor: LINK Aliexpress
5. 4 x 10K 0603 SMD resistor: LINK Aliexpress
6. 1 x 1.8K 0603 SMD resistor: LINK Aliexpress
7. 1 x 10R 0603 SMD resistor: LINK Aliexpress
8. 1 x 1N4007 M7 Diode: LINK Aliexpress
9. Female pins: LINK Aliexpress
10. Male pins: LINK Aliexpress
11. Push Button: LINK Aliexpress
12. IRFZ44N Mosfet LINK Aliexpress
13. 1 x 47uF Capacitor: LINK Aliexpress
14. 3mm LED: LINK Aliexpress
15. Male pins: LINK Aliexpress
