> ELECTRONOOBINO V3.0 (GERBERs only)

						🎁 INCLUDES SWEEPSTAKE ENTRY

					 TYPE: DIGITAL

					 CATEGORY: GERBERS

4.00 $You receive the GERBER files and information for this PCB.
This is a downloadable product. Buy it once and then download it all the times you want! I hope you understand this is NOT the assembled PCB.
Version: 3.0
Certificate: Non-Commercial Use
PCB size: 68 x  53mm (Arduino UNO compatible)
Voltage: 5V
NRF24 SPI port: Yes
i2c port for OLED
IR Receiver
Potentiometer on board
Buzzer on board
Double row pins
USB-C
Frequency: 16MHz
Color: Any (Select on order)
#0000
> AUTOMATIC_SWEEPSTAKE_INCLUSION_
								Purchasing this compilation node automatically registers your user ID into the live draw for:
								Win THE Creality Ender-3 V3.

								// SEQUENCE_COUNTDOWN: INITIALIZING_TELEMETRY...

								[ CHECK_OFFICIAL_RULES_LOG ]

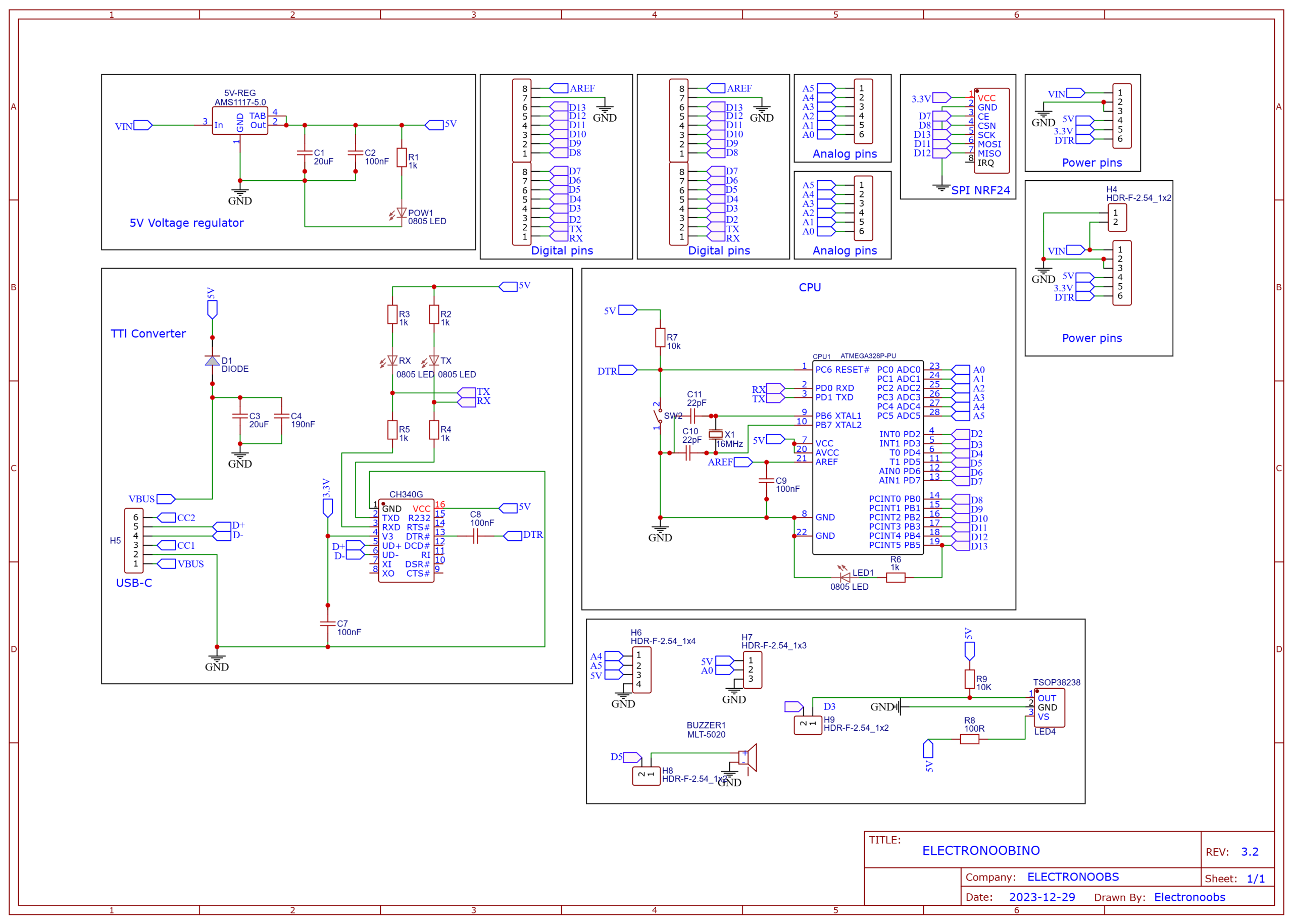

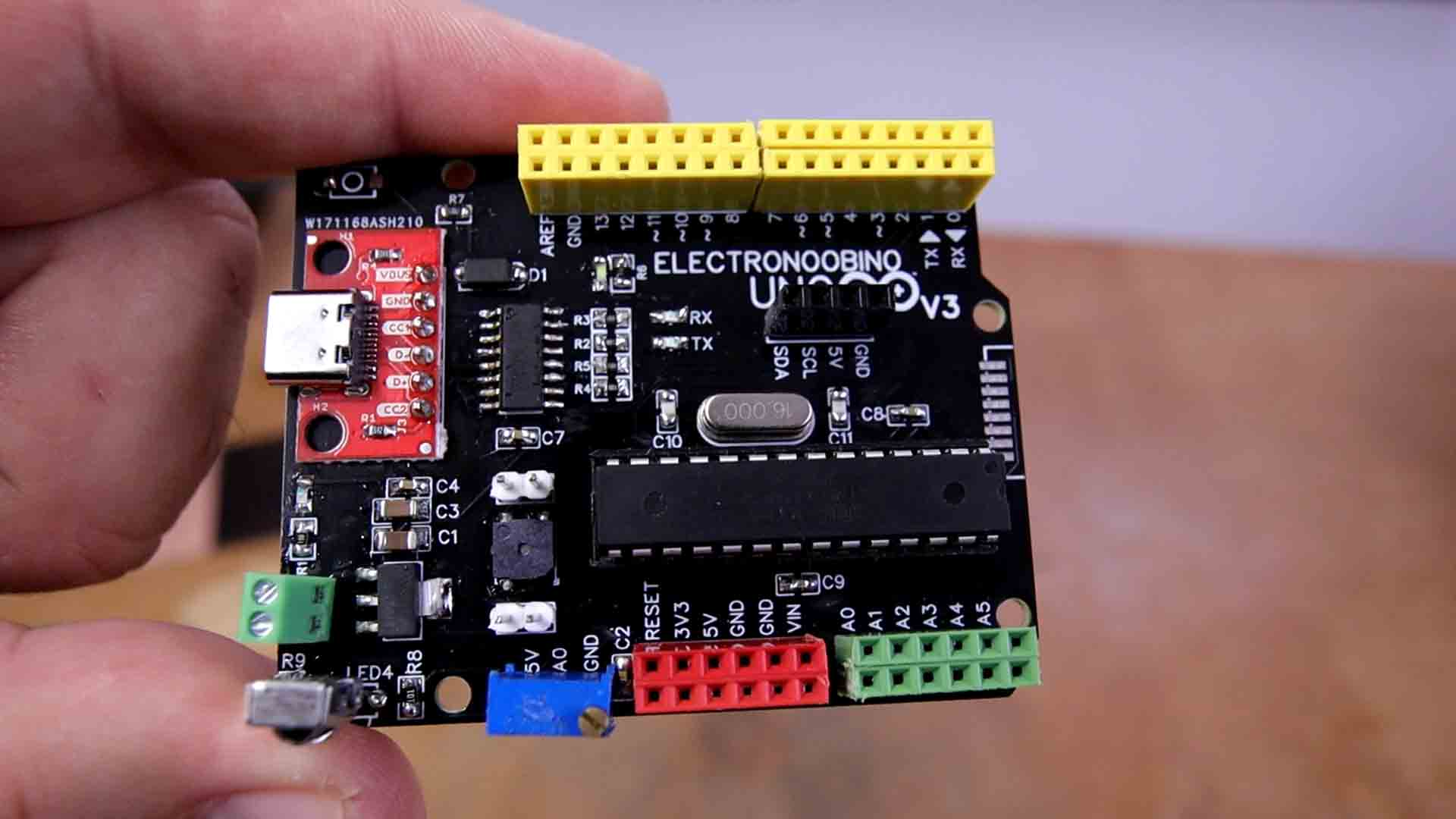

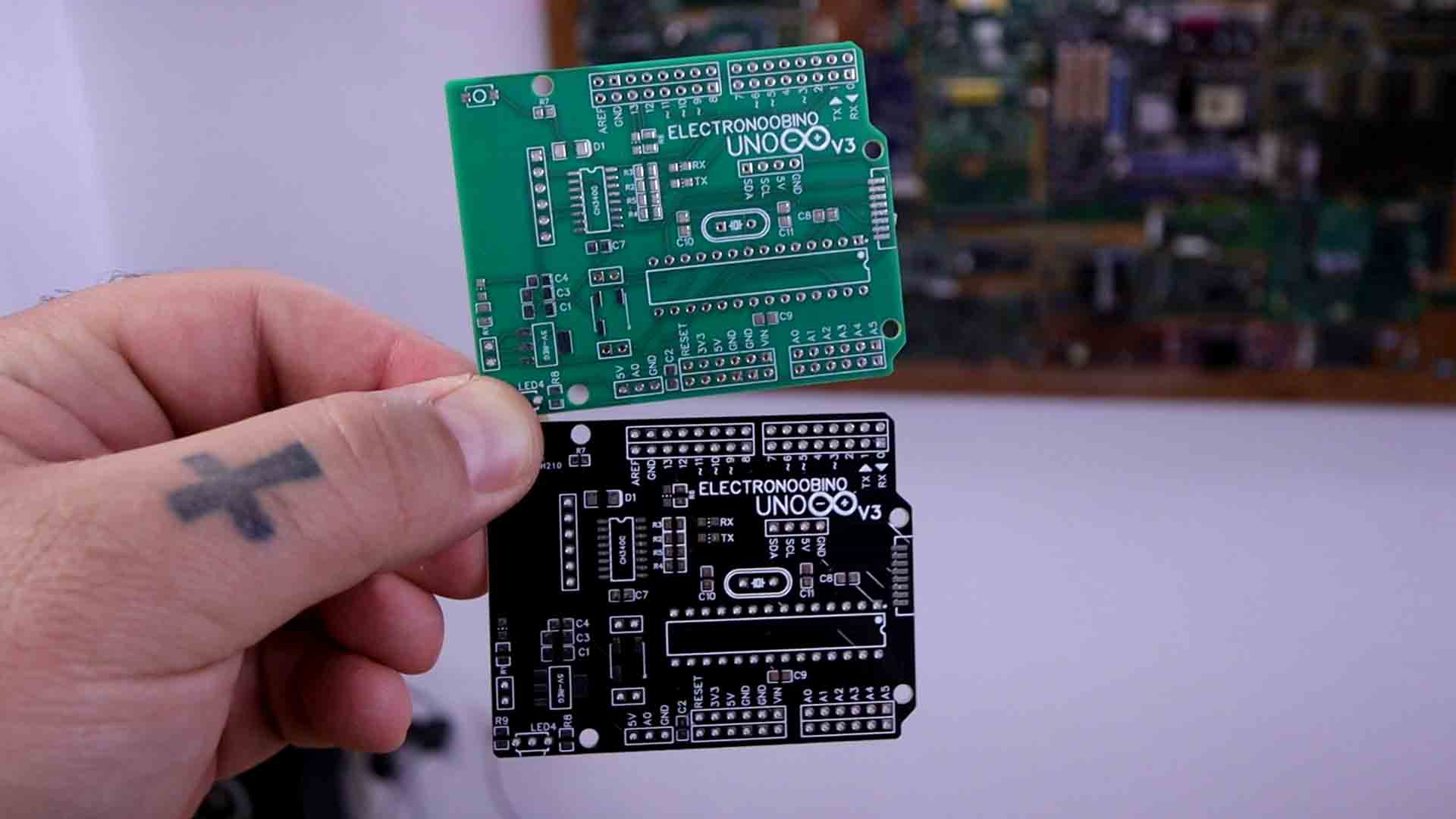

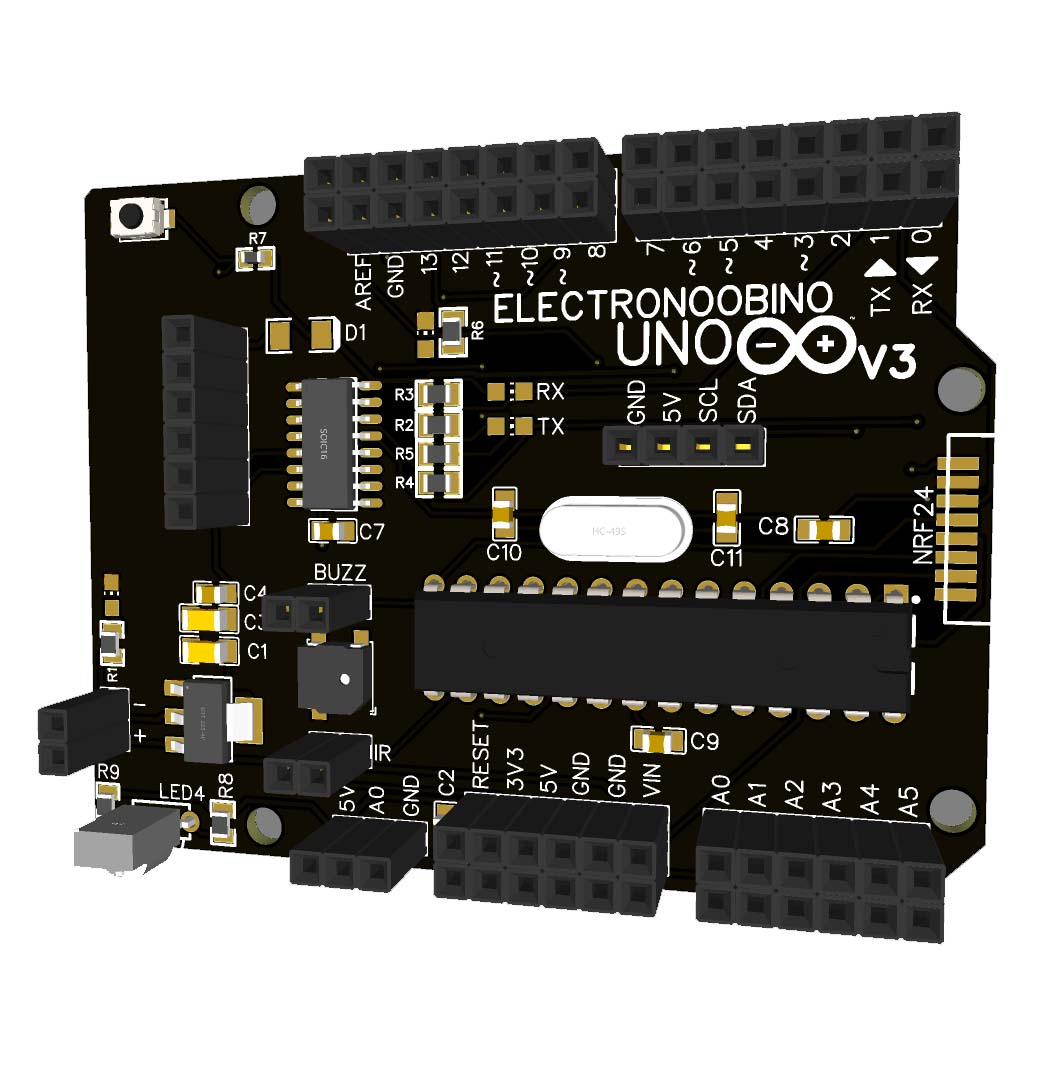

Get my design of the awesome compatible Arduino dev board called ELECTRONOOBINO V3.0

!!This is a downloadable product. Buy it once and then download it all the times you want! I hope you understand this is NOT the assembled PCB. You receive the GERBER files for the board and information for everything you need to make this project on your own.
*Once you make the order, go to my account → DOWNLOADS,  select the order and then click the Download link on the right side and the file will be downloaded in a .ZIP file.

SpecificationsVersion: 3.0
Certificate: Non-Commercial Use
PCB size: 68 x  53mm (Arduino UNO compatible)
Voltage: 5V
NRF24 SPI port: Yes
i2c port for OLED
IR Receiver
Potentiometer on board
Buzzer on board
Double row pins
USB-C
Frequency: 16MHz
Color: Any (Select on order)
Download includes:1 x GERBER files for PCB V3.0
