> Coilgun V1 PCB (only GERBERs)

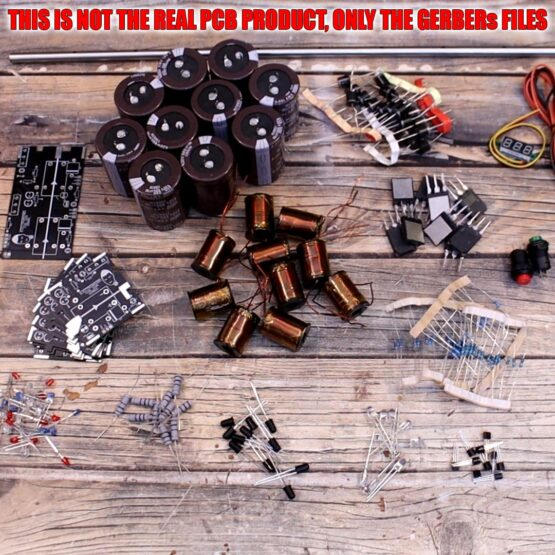

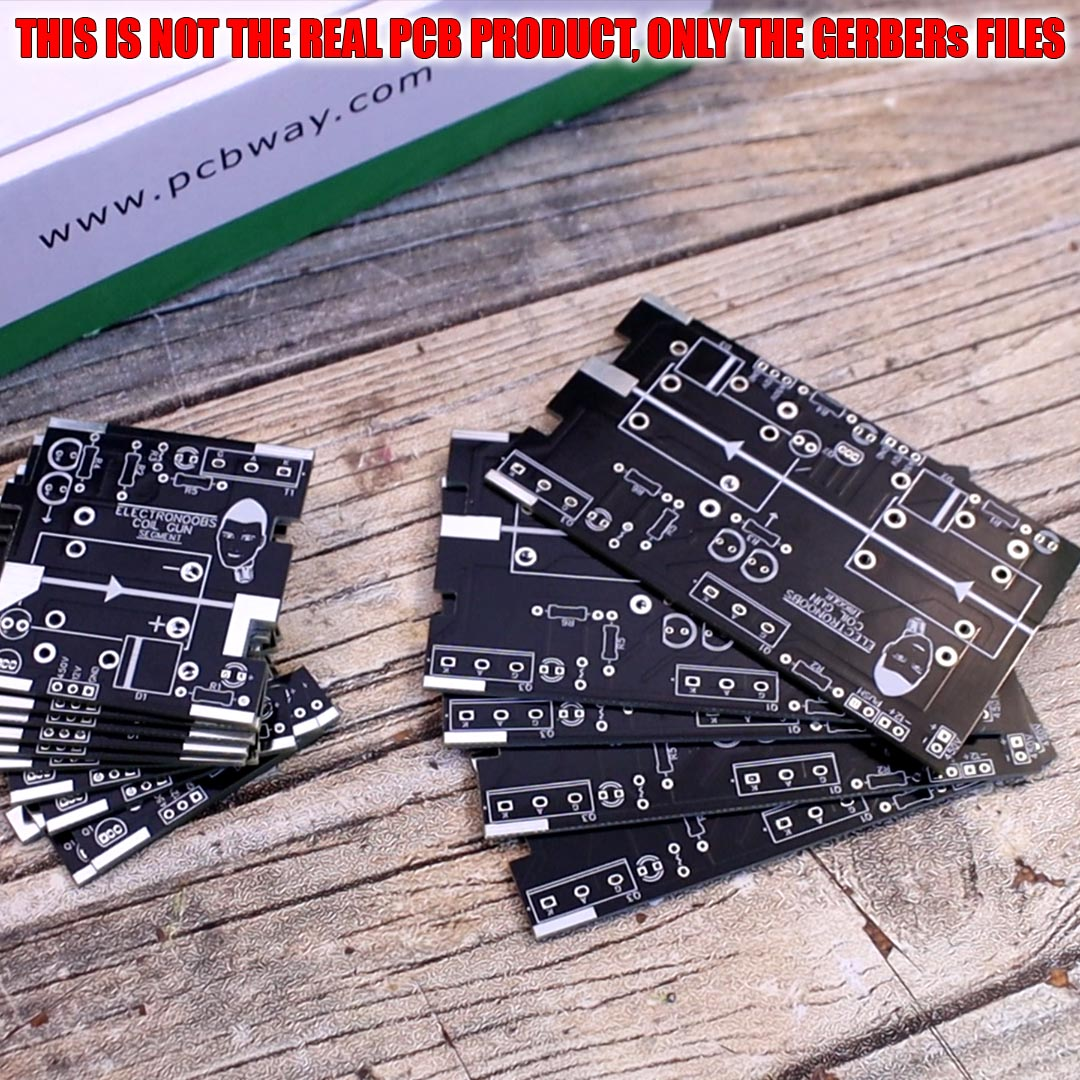

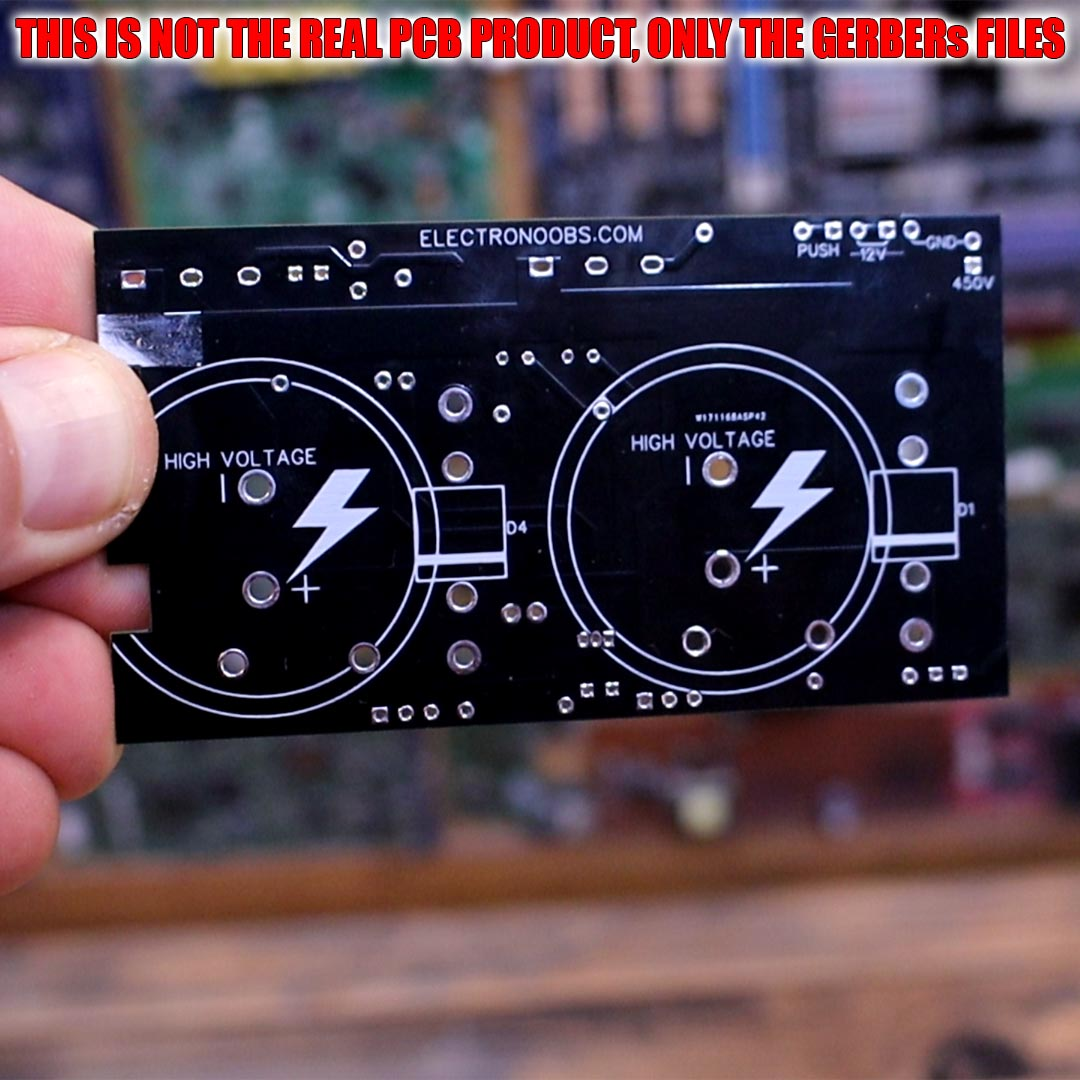

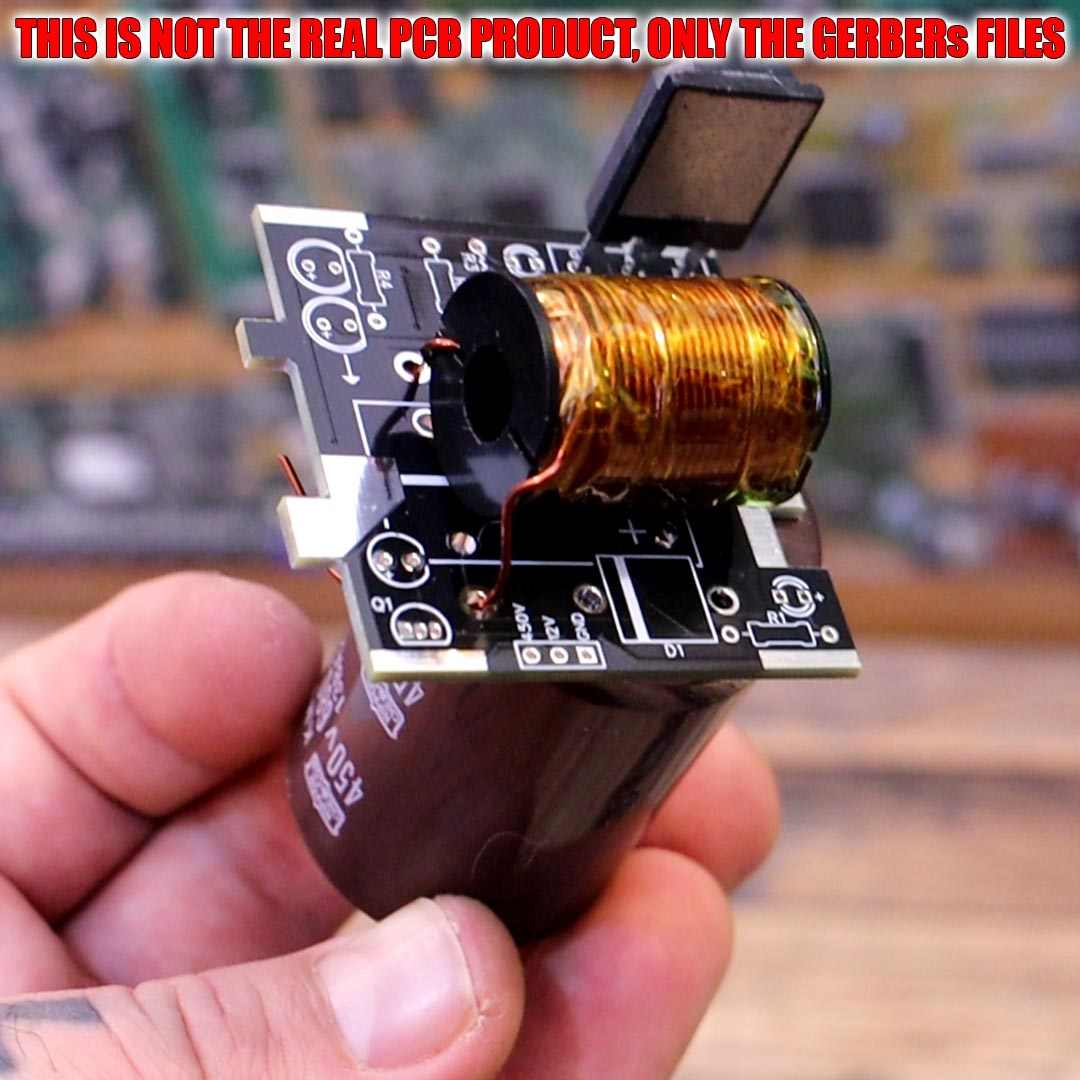

!!! This is a downloadable product. Buy it once and then download it all the times you want! I hope you understand this is NOT the assembled PCB. You receive the GERBER files for the board and information for everything you need to this version of the coilgun project. This will give you a working final product but you have to order the components separatelly.

Español: !!!Este es un producto descargable. ¡Cómpralo una vez y luego descárgalo todas las veces que quieras! Espero que entienda que esta NO es la PCB ensamblada. Recibe los archivos GERBER para la placa e información para todo lo que necesitas para esta versión del proyecto de pistola de bobinas. Esto te dará un producto final funcional, pero debes ordenar los componentes por separado.

If you want a full kit from AliExpress, you can fint it here: LINK

*Once you make the order, go to «MY account» -> DOWNLOADS,  select the order and then click the Download link on the right side and the file will be downloaded in a .ZIP file.

Specifications

1. Model Name: Coilgun main PCB
2. Version: 1.0
3. Size: 91mm*50mm
4. PCB weight: <20g
5. Soldermask color: Any (you choose when order the PCB)
6. Input voltage: 12VDC and 450VDC
7. Output Power: 0.2W
8. Input current: > 5A

Package includes:

1. 1 x GERBER files for main PCB V1.0

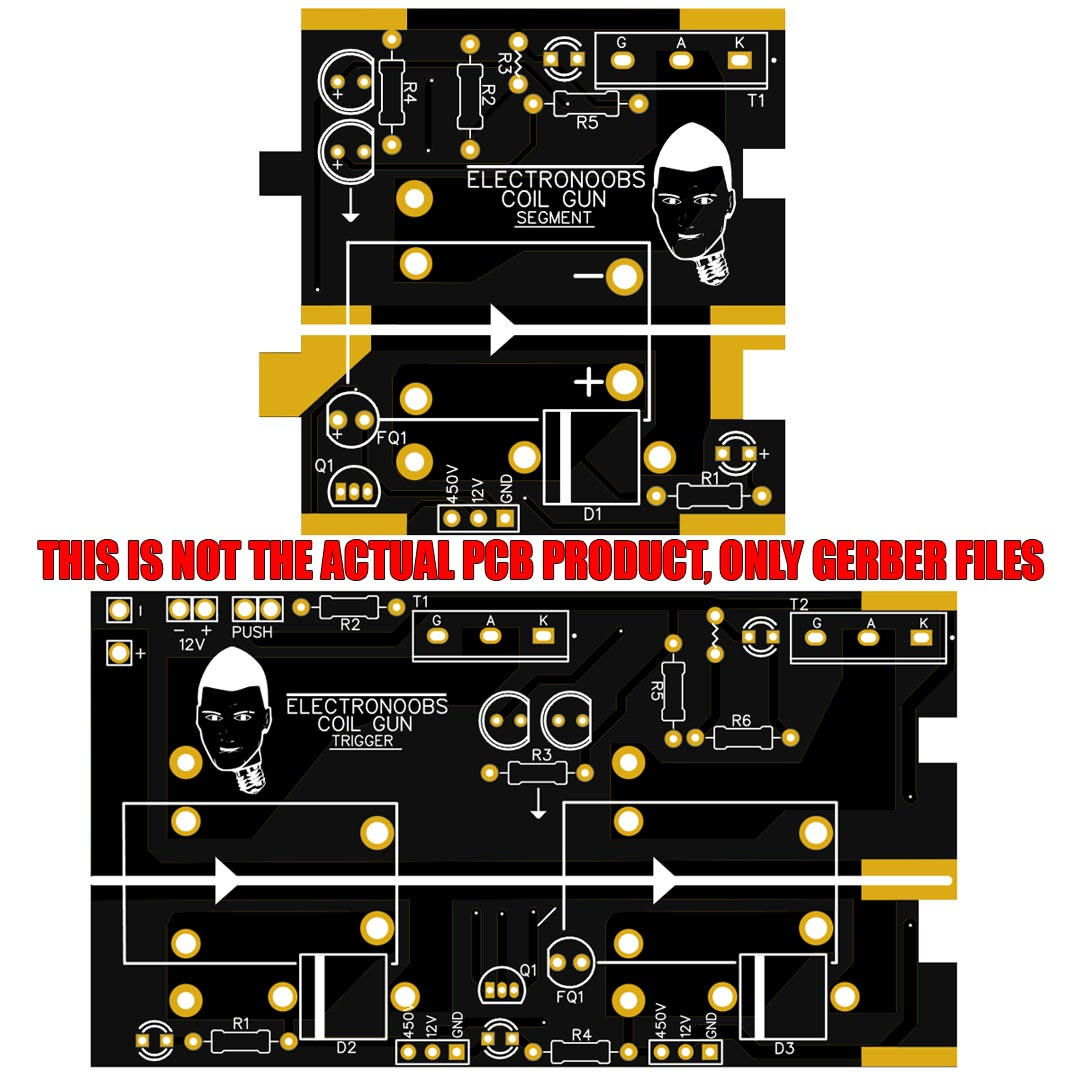

2. 1 x GERBER files for segment PCB V1.0
3. 1 x Schematic of main PCB (with values)
4. 1 x Schematic of segment PCB (with values)
5. 1 x Part list with links (might need update)

Video with the tutorial
