> Arduino based ESC v3.0 (GERBERs only)
My 3rd version of the Arduino based open source ESC. Get the PCB and the code and make your own!
!!This is a downloadable product. Buy it once and then download it all the times you want! I hope you understand this is NOT the assembled PCB. You receive the GERBER files for the board and information for everything you need to make this project on your own.
*Once you make the order, go to my account → DOWNLOADS, select the order and then click the Download link on the right side and the file will be downloaded in a .ZIP file.
Specs
- Version: 3.0
- Certificate: Non-Commercial Use
- Control: PWM (configurable)
- Default PWM input: 1000us – 20000us
- For: Sensorless brushless motor 3-phase
- PCB size: 5 0x 26mm
- Maximum voltage: 4S or 16.8V
- Recommended maximum ESC current without heat dissipators: 30A
- 25ºC MOSFETs Continuous Drain @Vgs 10V: 161A
- 100ºC MOSFETs Continuous Drain @Vgs 10V: 113A
- MOSFETs Pulsed Drain current: 620A
- Digital part voltage: 5V
This product is recommended for testing and learning. It is a good project but dosen’t have industrial characteristics, didn’t had too much tests made with it and was never used for drones or other RC projects. You can use it however you want but have in mind that ELECTRONOOBS won’t be responsable for mishandling the board or bad components solder.
*Once you make the order, go to your account -> orders, select the order and then click the Download link on the right side and the file will be downloaded.
Includes:

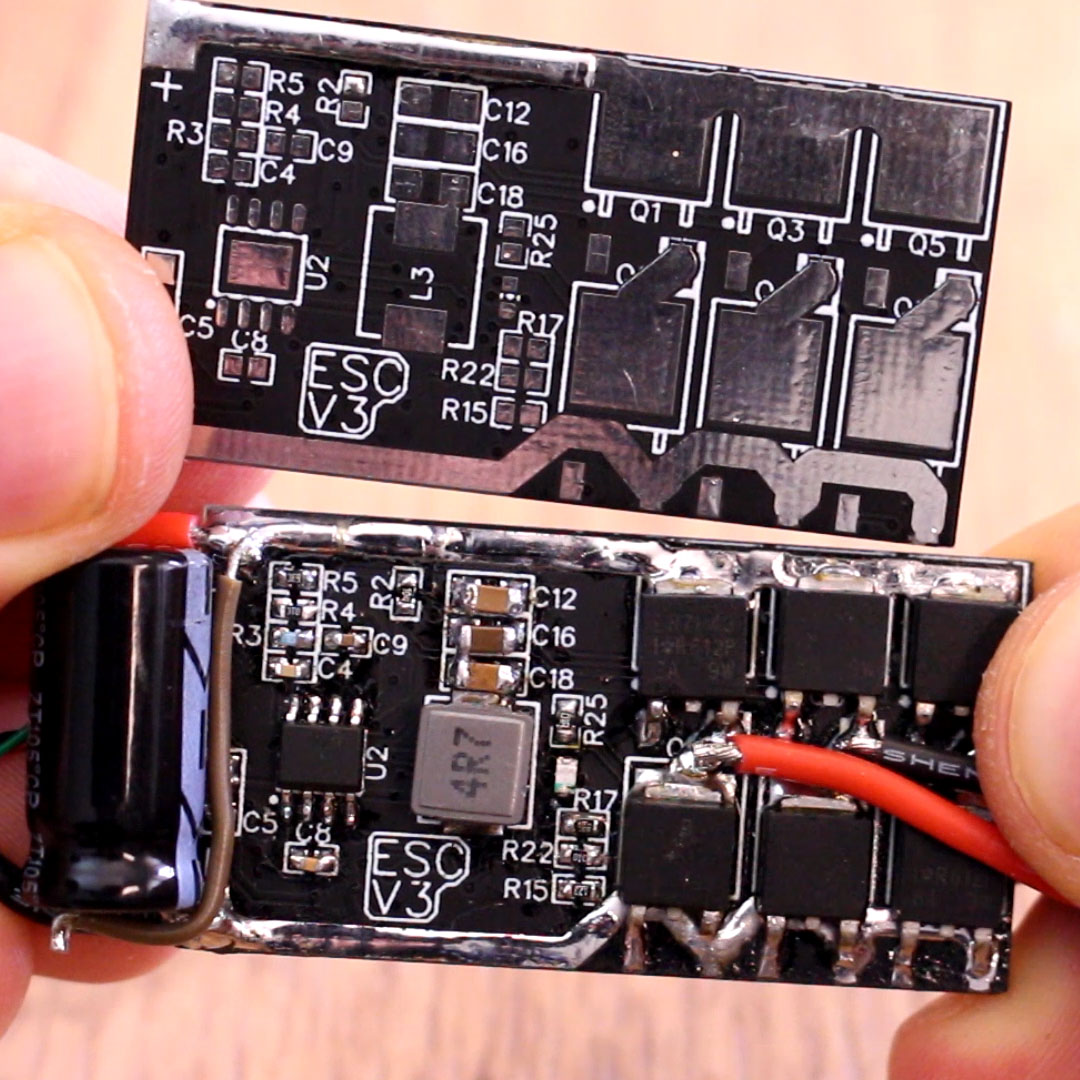

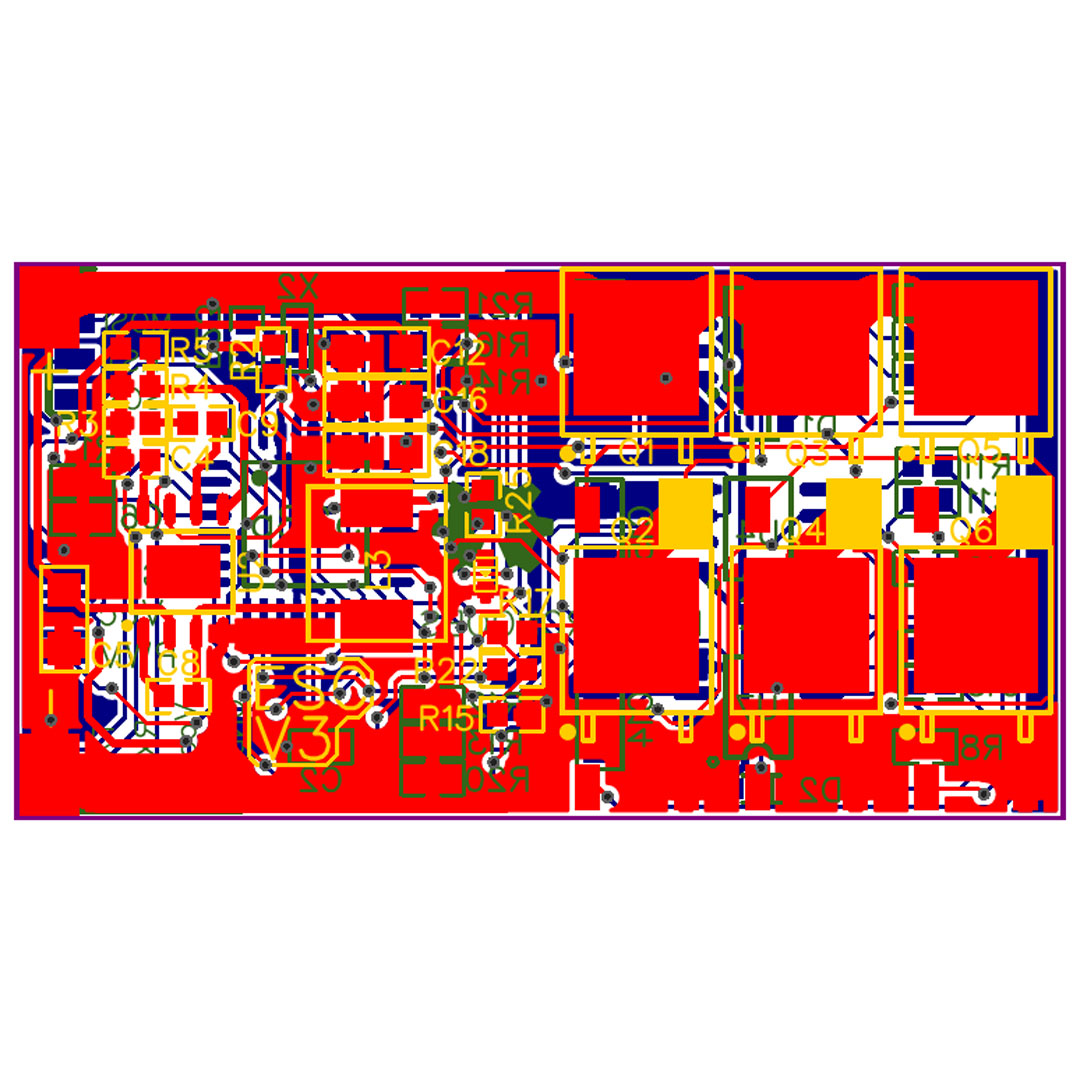

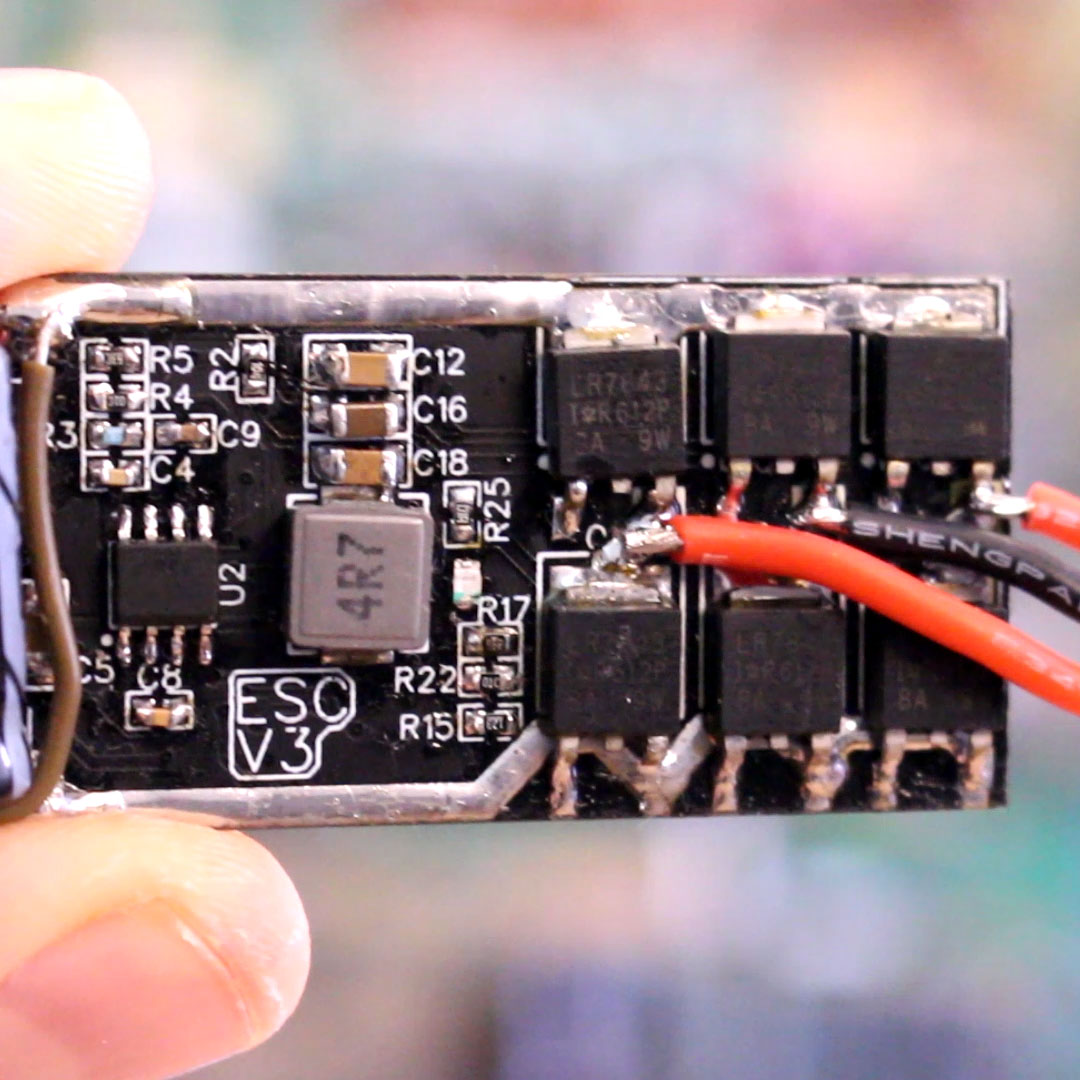

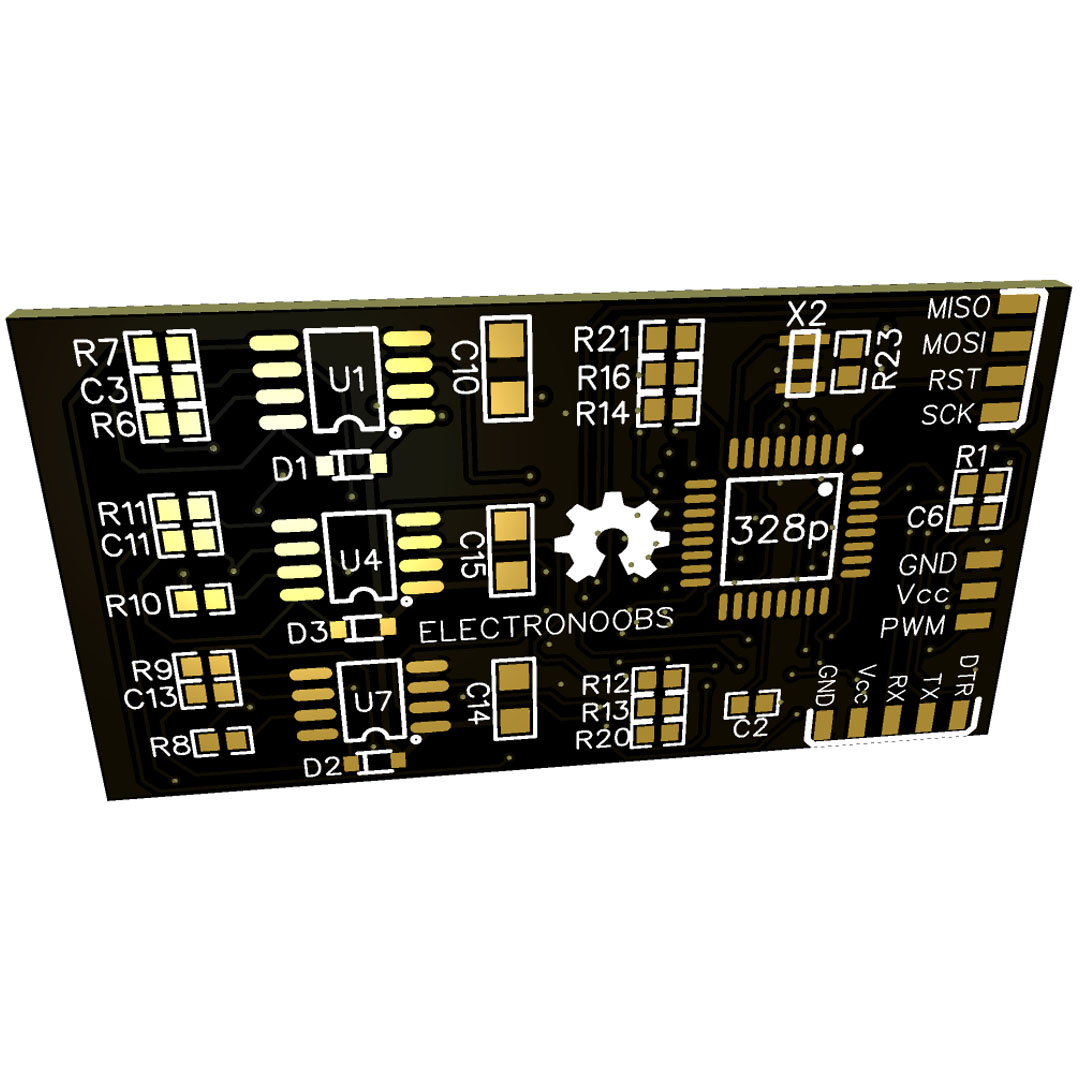

1 x GERBERs V3 for the PCB

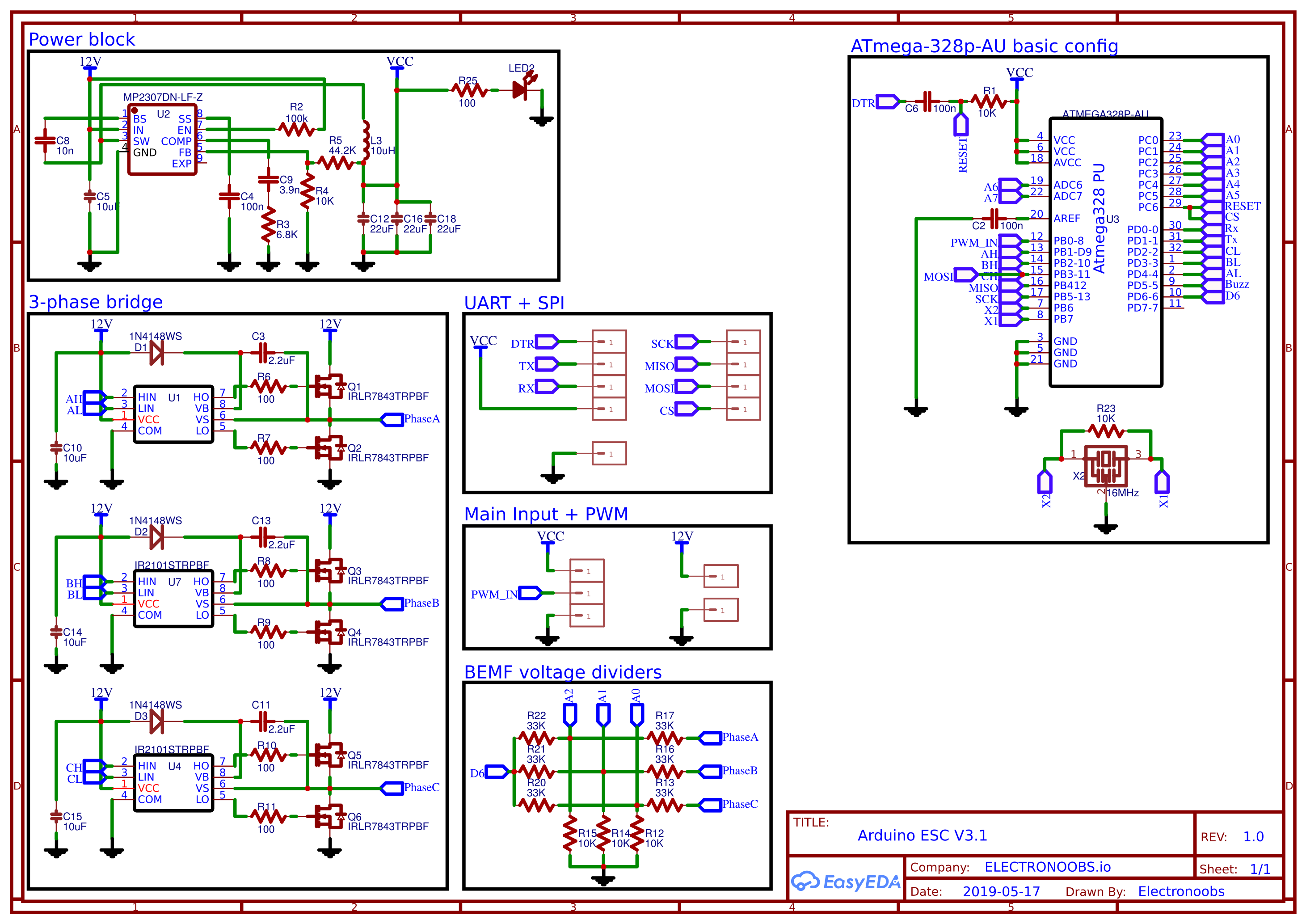

1 x Schematic V3 of the PCB
1 x Component list + values so you could order the parts.
1 x Arduino open source code for V3.
1 x Link to full tutorial and guide LINK HERE

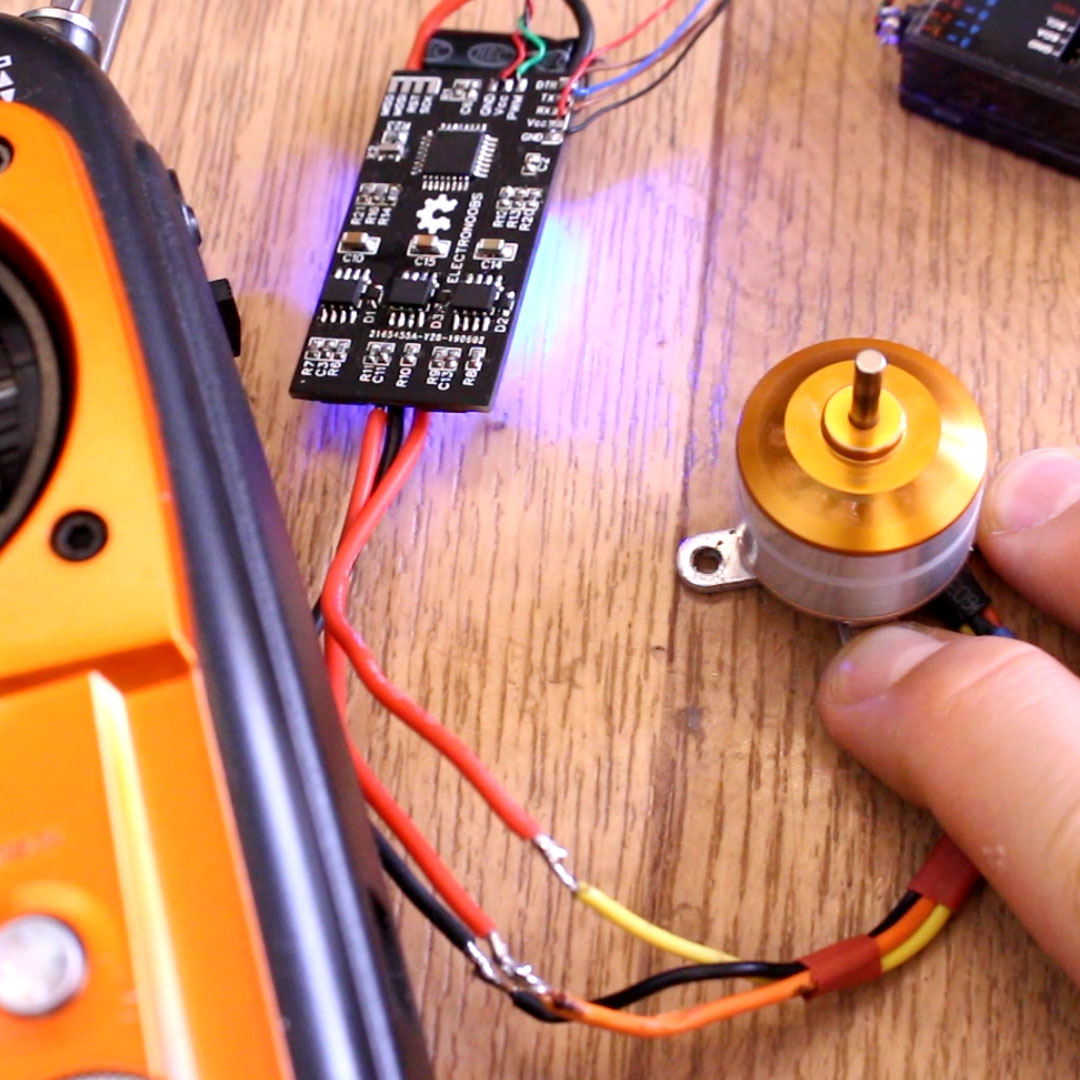

And here you can see a test video of version 3
